1/8 DIN Compact Temperature, Process and Strain PID Controllers

CNI8C and CNIS8C

Process and temperature PID Controller | CNI8C and CNIS8C

Process and temperature PID Controller

  • 51 mm Depth Behind Panel
  • Optional Wall-Mount Enclosure
  • Built-in Excitation
  • IP65 Front Panel
  • RS232, RS422/485 Communication, Menu Selectable
Instrumente für Druck und Kraft - Verwandte Produkte anzeigen

Beschreibung

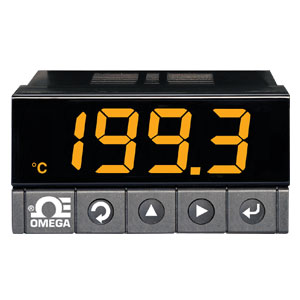

The compact CNi8C and CNiS8C controllers are similar to the full size i8 in an ultra-compact enclosure. Only 51 mm behind the panel. An optional wall-mount enclosure (see DP20-WME below) allows the unit to mounted in areas where panel space is not available.

The i8C/iS8C display can be programmed to change color between GREEN, AMBER, or RED at any setpoint or alarm point. The i8C/iS8C includes the option of both RS232 and RS485 in 1 instrument with the straightforward OMEGA™ ASCII protocol. If Modbus is required, we recommend our latest Platinum controllers - CNPT Series.

The i8C comes standard with your choice of 2 control or alarm outputs in almost any combination: solid state relays rated at 0.5 A @ 120/240 Vac; Form "C" SPDT relays rated at 3 A @ 120/240 Vac; pulsed 10 Vdc output for use with an external SSR; or analog output (0 to 10 Vdc or 0 to 20 mA) selectable for control or re-transmission of the process value.

The universal temperature and process instrument offer a selection of 10 thermocouple types as well as 2-, 3- or 4-wire RTDs, process voltage and current. The i8C controller is ideal for use with transmitters and amplified transducers. Built-in excitation is standard (24 Vdc @ 25 mA). The units handle 0 to 20 mA process current and process voltage in 3 scales: 0 to 100 mV, 0 to 1V, and 0 to 10V.

The strain/process instrument (model iS) meters and controllers measure inputs from load cells, pressure transducers, and most any strain gage sensor. Input ranges include 0 to 100 mVdc; -100 mVdc to 1 Vdc; 0 to 10 Vdc in addition to 0 to 20 mA. Excitation for transducers of 5 V and 10 V is standard.

The controller has an IP65 rated front panel. An optional splash proof cover (SPC18) provides additional protection and limits user access.


DP20-WME wall-mount enclosure shown with DP20 meter and SPC18 splash proof front cover fitted. DP20-WME Wall-mount enclosure pdf data sheet
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
Example part numbers are shown below. Please use the Part Number Builder below this table for other configurations.
CNi8C22
Consult Sales
Lieferzeit:


Temperature/process controller with two solid state relays (SSR's): 0.5 A @ 120/240 Vac continuous
CNiS8C22
Consult Sales
Lieferzeit:


Strain/Process with two solid state relays (SSR's): 0.5 A @ 120/240 Vac continuous
CNi8C23
Consult Sales
Lieferzeit:


Temperature/process controller with SSR and relay: Form C SPDT 3 A @ 120 Vac, 3 A @ 240 Vac
CNiS8C22
Consult Sales
Lieferzeit:


Strain/Process with SSR and relay: Form C SPDT 3 A @ 120 Vac, 3 A @ 240 Vac
CNi8C22-C24
628,10
Lieferzeit: 1 Woche

Temperature/process controller with two solid state relays (SSR's): 0.5 A @ 120/240 Vac and with isolated RS-232 and RS-485
CNiS8C24-C24
Consult Sales
Lieferzeit:


Strain/Process with SSR and pulsed 10 Vdc @ 20 mA (for use with external SSR) and with isolated RS-232 and RS-485
Optional Wall-Mount Enclosure
DP20-WME-2
Consult Sales
Lieferzeit:


IP65 Wall-mount ABS enclosure for 1/8 DIN panel meters. 175 wide x 125 high x 125 mm deep. With 2 glands for cable entry.
SPC4
€66,02
Lieferzeit: ab Lager

IP65 Splash proof cover for 1/8 DIN panel instruments.
*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Model Wählen Sie:
CNi8C für Temperature/Process with 2 Control Outputs Compact Case
CNiS8C für Strain/Process with 2 Control Outputs Compact Case

(2) Control Outputs #1 & 2 Direct (Cool) or Reverse (Heat) Acting Wählen Sie:
22 für Two solid state relays (SSRs) 0.5 A @ 120/240 Vac continuous
23 für SSR and relay Form C SPDT 3 A @ 120 Vac 3 A @ 240 Vac
24 für SSR and pulsed 10 Vdc @ 20 mA (for use with external SSR)
33 für 2 Relays Form C SPDT 3 A @ 120 Vac 3 A @ 240 Vac
42 für Pulsed 10 Vdc @ 20 mA (for use with external SSR) and SSR
43 für Pulsed 10 Vdc @ 20 mA (for use with external SSR) and relay Form C SPDT 3 A @ 120 Vac 3 A @ 240 Vac
44 für Two pulsed 10 Vdc @ 20 mA (for use with external SSR)
52 für Analog Output selectable as either control or retransmission of process value 0 to 10 Vdc or 0-20 mA @ 500 ohm max. and SSR
53 für Analog Output 0 to 10 Vdc or 0-20 mA @ 500 ohm max. and Relay
54 für Analog Output 0 to 10 Vdc or 0-20 mA @ 500 ohm max. and Pulse 10 Vdc

(3) Network Options Wählen Sie:
Keine (Feld leer lassen) für no network option
-C24 für Isolated RS-232 and RS-485

(4) POWER SUPPLY Wählen Sie:
Keine (Feld leer lassen) für Standard power input 90-240 Vac/dc 50-400 Hz
-DC für 12-36 Vac/dc 24 Vac
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
