Discontinued - DPG4000 Pressure Calibration kit

DPG4000-KIT

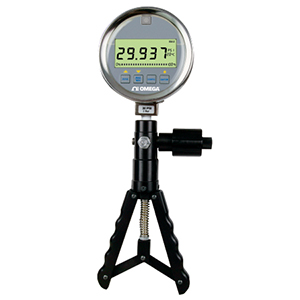

DPG4000 Pressure gauge Calibration Kit

ZUR BESTELLTABELLE

As an alternative see the DPG210-KIT series: .
Very High Accurate pressure gauge calibration kit: ±0.05% FS
RS232 Digital Communications Standard
Temperature Compensated: 0 to 50ºC
Displays in 18 Standard or Custom Engineering Units
Displays Ambient Temperature in ºC or ºF
Large, Backlit, 5-Digit Display with 16.5 mm (0.65") High Digits and 20-Segment Bar Graph
Rugged Stainless Steel Case Meets NEMA 4 (IP65) Rating
Min/Max Recall
Adjustable Tare Zeros Large System Offsets

Instrumente für Druck und Kraft - Verwandte Produkte anzeigen

Beschreibung

Replaced by DPG210-KIT.

OMEGA’s new pressure gauge calibration kits combine the high accuracy of DPG4000 Series digital pressure gauges with a pneumatic or hydraulic hand pump, providing an excellent solution for field calibration needs.
Kits include the DPG4000 digital gauge, hand pump, rugged carrying case, and a selection of fittings and hose. Kits with ranges of 500 psi or below include a pneumatic hand pump capable of generating 0 to 500 psi pressure or 0 to 28 inches of mercury vacuum. For ranges of 1000 psi or higher, a 0 to 10,000 psi hydraulic pump is included.
The DPG4000 takes the concept of a test gauge to a new level. It combines the accuracy of digital technology with the simplicity of an analog gauge, delivering performance, ease of use, and a feature set unmatched in the pressure measurement world. Setup of the DPG4000 is fast and straightforward, involving a menu driven display with minimal text and intuitive functions. The gauge is simple enough to be used anywhere in the world, without the need for multilingual displays.

SPECIFICATIONS
(0 to 50ºC Unless Otherwise Noted)
Accuracy: ±0.05% FS positive pressure, ±0.25% FS vacuum/500 psi and below
Temperature Compensation: 0 to 50ºC (32 to 122ºF) to rated accuracy
Standard Engineering Units: psi, bar, kg/cm2, inH2O (4ºC, 20ºC or 60ºF), ftH2O (4ºC, 20ºC or 60ºF), cmH2O (4ºC and 20ºC), mH2O (4ºC and 20ºC), kPa, mbar, inHg, mmHg, torr
Media Compatibility: see specifications of pump
Operating Temperature: -10 to 55ºC (14 to 131ºF)
Storage Temperature: -20 to 70ºC (-4 to 158ºF)
Dimensions: 111.1 H x 127 W x 38.1 mm D (4.375 x 5 x 1.50")
Hose Input Port: ≤500 psi: 1/8 MNPT
>500 psi:1/4 MNPT lower mount
Display: 5 digits, 16.5 mm (0.65") high
Bar Graph: 0 to 100% in 20 segments
Power: 3 "AA" alkaline batteries (included); 24 Vdc power optional
Battery Life: 1500 hr without backlight (2000 hr at slow sample rate)
Low-Battery Indicator: Icon displayed near the end of battery life. Remaining battery life can also be displayed on bar graph.

*Alle Preisangaben in Euro.
Anmerkung: DPG4000 calibration kits include DPG4000 pressure gauge, batteries, protective rubber boot, operator's manual, rugged carrying case, hand pump, fittings and tubing and an NIST traceable calibration certificate.
