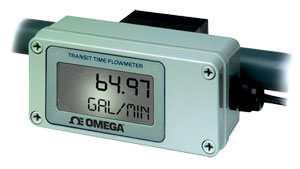

Transit-Time Ultrasonic Flow Meter

FDT-30 Series

ZUR BESTELLTABELLE

Compact Enclosure
Large Digital Display
4 to 20 mA, TTL and Turbine Simulated Outputs
Rate and Total Displays
Clean Liquid Compatible

Ultraschall-Durchflussmesser - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about Ultrasonic flow meter.

The FDT-30 Series provides easy and low cost installation by clamping to the outside of existing piping systems. Non-invasive transit time system allows solids to pass through the pipe with no affect on the meter. Y-strainers or filtering devices are not needed. Greater accuracy can be attained in applications consisting of entrained gases. The FDT-30 Series will automatically correct displayed flow rates and electronic outputs. Direct interface is provided to data collection systems via 4 to 20 mA output and either TTL-pulse or simulated turbine meter outputs that are proportional to fluid flow rate. Designed to replace mechanical flowmeters in applications where liquid conditions tend to damage or impede mechanical flow meter operation. No maintenance is required. The FDT-30 Series can be used on applications such as well water and other liquids with moderate amounts of suspended solids or aeration. FDT-30 Series is housed in an enclosure suitable for outdoor mounting. Integral mount transducers are available for pipes 50 mm (2") and smaller.

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

For Carbon Steel/Stainless Steel/ANSI Pipe

For Copper Pipe

For Plastic Tubing

FDT-35-T

Consult Sales

Lieferzeit:

18 to 830 LPM range, 1-1/2" plastic tubing

Accessories

FDT-30-PC CABLE

€276,78

Lieferzeit: 5 Wochen

PC Communications Cable (recommended for first time buyers allows programming of the FDT-30 series with a PC)

FDT-30-CABLE CLAMP

€26,02

Lieferzeit: 1 Woche

Water tight cable clamp

FD-GREASE

€29,99

Lieferzeit: 1 Woche

Acoustic couplant for sensor mounting, max temperature 65°C, 6 g pillow pack

FDT-GREASE

€76,53

Lieferzeit: 1 Woche

Replacement acoustic couplant for sensor mounting, max temperature 65°C, 150 g tube

FDT-HT-GREASE

€171,95

Lieferzeit: 1 Woche

Acoustic couplant for sensor mounting, max temperature 200°C 57 g tube

FDT-NS-GREASE

€76,53

Lieferzeit: ab Lager

Non-silicone acoustic couplant for sensor mounting, 79 g tube

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with coupling grease and operator's manual.
