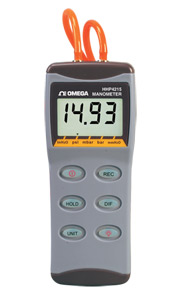

Digital Manometer for Clean Dry Gases - Discontinued

HHP4200 Series

Digital Manometer for Clean Dry Gases

ZUR BESTELLTABELLE

Digital Display of Gauge or Differential Pressure
0 to 2 psi to 0 to 100 psi ranges
User Selectable Engineering Units
Min and Max Memory
RS232 Output with Optional Software
Auto Power Off and Low Battery Indication
Bright Backlit Display

Beschreibung

The HHP4200 series has been discontinued. Please see the HHP8200 as a possible alternative or contact our Pressure Engineering department.

The HHP4200 series is a low cost handheld manometer capable of measuring differential pressure and positive or negative gauge pressure. Five models are available covering ranges from 0-2 to 0-100 psi. All models feature user selectable engineering units, MIN/MAX memory and a bright backlit display for easy viewing in low light conditions.

SPECIFICATIONS
Accuracy: ±0.3% FS
Resolution: See "To Order" table Engineering Units (User Selectable): psi, mbar, bar, inH₂O, cmH₂O, mmHg, ozin², kgcm², kPa, ftH₂O, in Hg (except HHP4252: psi, mbar, bar, inH₂O, mmH₂O)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Operating Temperature: 0 to 50°C (32 to 122°F)
Temperature Effects: ±0.2% FS typical (±1% max)
Proof Pressure: See "To Order" table
Pressure Media: Clean, dry, non-corrosive gases
Response Time: 0.5 sec Pressure Connections/
Tubing Size: Hose barb for 4 mm ID tubing
Battery: 9V battery (included)
Battery Life: 30 hours (with out backlight)
Dimensions: 182 H x 72 W x 30 mm D (7.16 x 2.83 x 1.18")
Weight: 150 g (5.3 oz)

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

HHP4200

€199,10

Lieferzeit: 1 Woche

0 to 100psi range, 0.1psi resolution, 150psi proof pressure

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with 9V battery, connection hose, hard carrying case and operator’s manual.
