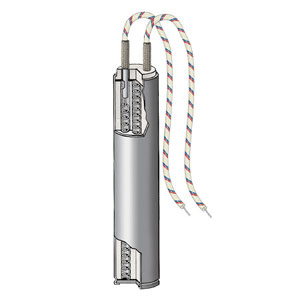

Low Density electric Cartridge Heater 5/8" Diameter, Actual 15.77 mm (0.621")

LDC5 Series

LDC5 Low Density electric Cartridge Heater 5/8

  • Typical Applications
  • Heat Sealing Equipment
  • Laminating Equipment
  • Packaging Equipment
  • Labeling Machines
  • Molds and Dies
  • Food Processing
  • Refrigeration
  • Shoe Machinery
  • Glue Guns
  • Wax Pots
  • Heating Liquids
  • Heating Gases
Heizkartuschen - Verwandte Produkte anzeigen

Beschreibung

More information about how Cartridge Heaters work in this link.

Low-density cartridge heaters are an excellent, cost effective choice without compromising quality for Original Equipment Manufacturers (OEMs) consuming large quantities of cartridge heaters for their equipment.

Standard Specifications and Tolerances
Performance Ratings
Maximum Temperature: 650°C (1200°F)
Maximum Watt Density: 3.1 to 7.0 Watt/cm² (20 to 45 Watt/in²) depending on heater size and operating temperature

Model No. Sheath Length     Watts Watt Density
120V 240V mm inch Watt/cm2 Watt/in2
LDC00163 LDC00164 38.1 112 100 7.9 51
LDC00165 LDC00166 50.8 2 100 5.3 34
LDC00167 LDC00168 63.5 212 80 3.2 20
LDC00169 LDC00170 63.5 212 150 5.9 38
LDC00171 LDC00172 76.2 3 175 5.5 36
LDC00173 LDC00174 88.9 312 190 5.0 32
LDC00175 LDC00176 101.6 4 200 4.5 29
LDC00177 LDC00178 114.3 412 240 4.7 31
LDC00179 LDC00180 114.3 412 275 5.4 35
LDC00181 LDC00182 127.0 5 200 3.5 23
LDC00183 LDC00184 127.0 5 250 4.4 28
LDC00185 LDC00186 127.0 5 375 6.6 42
LDC00187 LDC00188 139.7 512 200 3.2 20
LDC00189 LDC00190 139.7 512 285 4.5 29
LDC00191 139.7 512 510 8.1 52
LDC00192 LDC00193 149.2 578 350 5.1 33
LDC00194 LDC00195 152.4 6 200 2.9 19
LDC00196 LDC00197 152.4 6 300 4.3 28
LDC00198 LDC00199 152.4 6 350 5.0 32
LDC00200 LDC00201 165.1 612 350 4.6 30
LDC00202 LDC00203 177.8 7 375 4.6 29
LDC00204 LDC00205 203.2 8 400 4.2 27
LDC00206 LDC00207 215.9 812 425 4.2 27
LDC00208 LDC00209 228.6 9 450 4.2 27
LDC00210 LDC00211 241.3 912 475 4.2 27
LDC00212 LDC00213 254.0 10 500 4.2 27
LDC00214 LDC00215 279.4 11 550 4.1 27
LDC00216 LDC00217 304.8 12 250 1.7 11
LDC00218 LDC00219 304.8 12 500 3.4 22
LDC00220 LDC00221 304.8 12 600 4.1 27
LDC00222 LDC00223 304.8 12 700 4.8 31
LDC00224 LDC00225 314.3 1238 450 3.0 19
LDC00226 LDC00227 355.6 14 700 4.1 26
LDC00228 LDC00229 381.0 15 750 4.1 26
LDC00230 LDC00231 406.4 16 800 4.1 26
LDC00232 LDC00233 431.8 17 1000 4.8 31
LDC00234 LDC00235 457.2 18 725 3.3 21
LDC00236 LDC00237 457.2 18 800 3.6 23
LDC00238 LDC00239 508.0 20 900 3.6 24
LDC00240 533.4 21 1000 3.9 25
LDC00241 558.8 22 2000 7.3 47
LDC00242 609.6 24 2000 6.7 43
LDC00243 635.0 25 768 2.5 16
LDC00244 635.0 25 1100 3.5 23
LDC00245 LDC00246 635.0 25 1500 4.8 31
LDC00247 685.8 27 1200 3.6 23
LDC00248 711.2 28 2000 5.7 37
LDC00249 762.0 30 2000 5.4 35
LDC00250 787.4 31 2000 5.2 33
LDC00251 863.6 34 2000 4.7 30
LDC00252 914.4 36 2000 4.4 29
LDC00253 965.2 38 2000 4.2 27
LDC00254 979.5 38916 1200 2.5 16
Note: model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
Ordering Example: LDC00241, 2000 W, 240 Vac, cartridge heater.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
LDC00176
Consult Sales
Lieferzeit:


240 Volt, 200 Watts, sheath length 4 in
LDC00192
Consult Sales
Lieferzeit:


120 Volt, 350 Watts, sheath length 5 7/8 in
LDC00201
Consult Sales
Lieferzeit:


240 Volt, 350 Watts, sheath length 6 1/2 in
LDC00210
Consult Sales
Lieferzeit:


120 Volt, 475 Watts, sheath length 9 1/2 in
LDC00229
Consult Sales
Lieferzeit:


240 Volt, 750 Watts, sheath length 15 in
LDC00243
Consult Sales
Lieferzeit:


120 Volt, 768 Watts, sheath length 25 in
LDC00246
Consult Sales
Lieferzeit:


240 Volt, 1500 Watts, sheath length 25 in

Bestellung nach Modellnummer

Artikelnummer
Stk
Artikelnummer
Stk


*Alle Preisangaben in Euro.
Anmerkung: * Low density cartridge heaters are UL recognized and CSA certified in many design variations under UL File Number E65652 and CSA File Number 043099. If you require UL and/or CSA Agency Approval, please specify when ordering. Dimensional Specifications Electrical Specifications **480V when applicable. Contact Omega. Note: Model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
