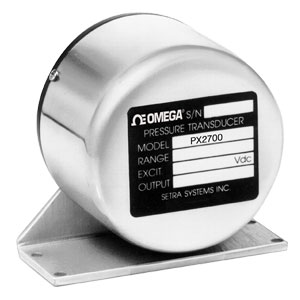

HIGH ACCURACY ENVIRONMENTAL PRESSURE TRANSMITTER

PX2700-Series

HIGH ACCURACY ENVIRONMENTAL PRESSURE TRANSMITTER | PX2700-Series

HIGH ACCURACY ENVIRONMENTAL PRESSURE TRANSMITTER

CE
  • Barometric, Gage or Absolute Pressure Models
  • Environmental Monitoring Systems
  • Weather Measurement Systems
  • Environmental Data Logging
  • Laboratory and Test Station Monitoring
Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

This item is discontinued.


The PX2700 series is being discontinued on May 1, 2019. Please see the PX2650 or the PX2780 as a possible alternative or contact our Pressure Engineering department.

The PX2700 transducers use an extremely accurate capacitive sensor to provide excellent accuracy, repeatability and long term stability. Each unit is digitally calibrated using custom ASIC and multipoint mapping techniques to achieve very high performance.

SPECIFICATIONS
Accuracy RSS (21°C): <±0.05% full scale (RSS includes non-linearity, hysteresis and non-repeatability)
Non-Linearity: ±0.05% full scale terminal point; ±0.03% full scale BFSL
Hysteresis: ±0.01% full scale
Non-Repeatability: ±0.01%
Resolution: Infinite; limited only by output noise (0.005% full scale)
Storage Temperature: -54 to 120°C (-65 to 250°F)
Operating Temperature: -18 to 80°C (0 to 175°F)
Compensated Range: -1 to 49°C (30 to 120°F)
Thermal Zero Shift:
    Barometric: <±0.18% full scale/50°C (<±0.2% full scale/100°F)
    Other Ranges: <±0.09% full scale/50°C (<±0.1% full scale/100°F)
Thermal Sensitivity Effects: <±0.09% full scale/50°C (<±0.1% full scale/100°F)
Long Term Stability: <±0.1% full scale 6 months
Overpressure: See To Order table
Excitation: 22 to 32 Vdc (0.8 mA; 0.2 W) (will operate on 28 Vdc aircraft power)
Output: 0 to 5 Vdc (4-wire circuit)
    Full Scale Span Setting: ±5 mV
    Zero Setting: ±5 mV
Warm-Up: <±0.04% full scale shift after 20 minutes
Response Time: < 10 ms to reach 90% final output with step function
Shock: 50 g operating, ½ sine 10 ms
Vibration: 2 g from 5 to 500 Hz
    Acceleration: 10 g
Electrical Connection: 0.6 m (2') cable
Pressure Connection: 1/8-27 NPT male
Mounting: Screw holes for wall or bench mounting
Pressure Media: Non-condensing air or gas compatible with hard anodized aluminum, alumina, gold, fluorocarbon elastomer sealant, and Buna-N O-ring fluorocarbon elastomer sealant, and Buna-N O-ring
Weight: 255 g (9 oz)
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
BAROMETRIC PRESSURE
PX2700-600B5V
Consult Sales
Lieferzeit:


Range 600 to 1100 hPa (mb), Maximum Pressure 20 psia
PX2700-800B5V
Consult Sales
Lieferzeit:


Range 800 to 1100 hPa (mb), Maximum Pressure 20 psia
Absolute Pressure
PX2700-010A5V
Consult Sales
Lieferzeit:


Range 0 to 10 psia, 690 mb, Maximum Pressure 1.5 x full scale
PX2700-020A5V
Consult Sales
Lieferzeit:


Range 0 to 20 psia, 1.38 b, Maximum Pressure 1.5 x full scale
PX2700-050A5V
Consult Sales
Lieferzeit:


Range 0 to 50 psia, 3.45 b, Maximum Pressure 1.5 x full scale
PX2700-100A5V
Consult Sales
Lieferzeit:


Range 0 to 100 psia, 6.9 b, Maximum Pressure 1.5 x full scale
Gage Pressure
PX2700-005G5V
Consult Sales
Lieferzeit:


Range 0 to 5 psig, 345 mb, Maximum Pressure 1.5 x full scale
PX2700-010G5V
Consult Sales
Lieferzeit:


Range 0 to 10 psig, 690 mb, Maximum Pressure 1.5 x full scale
PX2700-020G5V
Consult Sales
Lieferzeit:


Range 0 to 20 psig, 1.38 b, Maximum Pressure 1.5 x full scale
PX2700-050G5V
Consult Sales
Lieferzeit:


Range 0 to 50 psig, 3.45 b, Maximum Pressure 1.5 x full scale
PX2700-100G5V
Consult Sales
Lieferzeit:


Range 0 to 100 psig, 6.9 b, Maximum Pressure 1.5 x full scale
