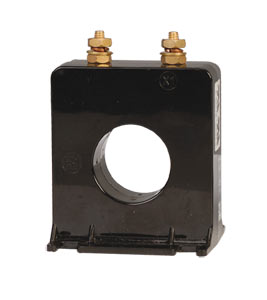

AC Current Transformers For Instrumentation

CTR Series

ZUR BESTELLTABELLE

For Ammeters, Wattmeters, Instrumentation, Relays and Energy Management Systems
Current Ratios From 100:5 to 1600:5
Solid-Core and Split-Core Models
Flexible Leads or Brass Stud Terminal Models

Beschreibung

The CTR Series 5 A secondary current transformers offer a compact, cost-effective means of measuring primary current and providing a 0 to 5 A output pro-portional to the primary current being sensed. Models include solid-core, doughnut-style round current transformers that mount directly on a conductor and have 609 mm (24") leads standard. Square current transformers have mounting feet and terminals for panel mount applications. Split-core models offer the same means of providing a 0 to 5 A output in proportion to the primary current being sensed as their solid-core counterparts but with the additional ease of split-core installation, and come in a molded two-piece enclosure with a friction fit interlocking opening and terminals.

SPECIFICATIONS

CTR-2SFT
Window Diameter: 28.7 mm (1.13")
Frequency: 50 to 400 Hz
Insulation Level: 600V, 10 kV Bil (Basic Insulation Level) full wave
Rating Factor: 2.0 at 30ºC ambient (factor by which the nominal full load current of a CT can be multiplied to determine the absolute maximum measurable primary current at specified ambient temperature)
Approximate Weight: 227 g (0.5 lb)

CTR-5RL and CTR-5SFT
Window Diameter: 39.6 mm (1.56")
Frequency: 50 to 400 Hz
Insulation Level: 600V, 10 kV Bil full wave
Approximate Weight: 454 g (1.0 lb)

CTR-7RL and CTR- 7SFT
Window Diameter: 63.5 mm (2.50")
Frequency: 50 to 400 Hz
Insulation Level: 600V, 10 kV Bil full wave
Approximate Weight: 680 g (1.5 lb)

CTR-600
Window Size: 50.8 x 139.7 mm (2.00 x 5.50")
Frequency: 50 to 400 Hz
Insulation Level: 600V, 10 kV Bil full wave
Rating Factor: 1.33 at 30ºC ambient, 1.0 at 55ºC amb
Approximate Weight: 680 g (1.5 lb)

CTR-601
Window Size: 114.3 x 114.3 mm (4.50 x 4.50")
Frequency: 50 to 400 Hz
Insulation Level: 600V, 10 kV Bil full wave
Rating Factor: 1.33 at 30ºC ambient, 1.0 at 55ºC amb
Approximate Weight: 680 g (1.5 lb)

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

CTR-2SFT-101

Consult Sales

Lieferzeit:

100:5A, ±1% accuracy, 2.0 Burden VA at 60 Hz

CTR-2SFT-201

Consult Sales

Lieferzeit:

200:5A, ±1% accuracy, 4.0 Burden VA at 60 Hz

CTR-5RL-101

Consult Sales

Lieferzeit:

100:5A, ±2% accuracy, 2.0 Burden VA at 60 Hz

CTR-5RL-201

Consult Sales

Lieferzeit:

200:5A, ±2% accuracy, 5.0 Burden VA at 60 Hz

CTR-5RL-501

Consult Sales

Lieferzeit:

500:5A, ±1% accuracy, 20.0 Burden VA at 60 Hz

CTR-5SFT-101

Consult Sales

Lieferzeit:

100:5A,±2% accuracy, 2.0 Burden VA at 60 Hz

CTR-5SFT-201

Consult Sales

Lieferzeit:

200:5A, ±2% accuracy, 5.0 Burden VA at 60 Hz

CTR-7RL-101

Consult Sales

Lieferzeit:

100:5A, ±2% accuracy, 2.5 Burden VA at 60 Hz

CTR-7RL-201

Consult Sales

Lieferzeit:

200:5A, ±1% accuracy, 5.0 Burden VA at 60 Hz

CTR-7RL-501

Consult Sales

Lieferzeit:

500:5A, ±1% accuracy, 25.0 Burden VA at 60 Hz

CTR-7SFT-101

Consult Sales

Lieferzeit:

100:5A, ±2% accuracy, 2.5 Burden VA at 60 Hz

CTR-7SFT-201

Consult Sales

Lieferzeit:

200:5A, ±1% accuracy, 5.0 Burden VA at 60 Hz

CTR-7SFT-102

Consult Sales

Lieferzeit:

1000:5A, ±1% accuracy, 35.0 Burden VA at 60 Hz

CTR-600-401

Consult Sales

Lieferzeit:

400:5A 1.5 VA at 1% Class

CTR-600-501

Consult Sales

Lieferzeit:

500:5A, 2.0 VA at 1% Class

CTR-600-401

Consult Sales

Lieferzeit:

400:5A, 1.5 VA at 1% Class

CTR-600-501

Consult Sales

Lieferzeit:

500:5A, 2.0 VA at 1% Class

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with instruction sheet.
