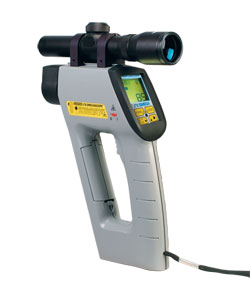

High-Temperature Wireless Handheld Infrared Thermometer
with Optional Sighting Scope and Distance Measurement - Discontinued

OS523E_24E-W Series

ZUR BESTELLTABELLE

Built-In Wireless Measurement
Rugged, High-Performance Design
Models Available with Temperature Ranges to 2482°C (4500°F)
Built-In Laser Sighting Dot/Circle Switchable
Emissivity Adjustable from 0.1 to 1.00 in 0.01 Steps
Distance-Measuring Option, Field-Mountable or Built-In [0.9 to 9 m (3 to 30'') Range]
Custom LCD Indicates Current with Min, Max, Average, or Differential Temperatures
°C/°F Selectable
1 mV/Degree Analog Output Standard (0.5 mV/Degree on OS524E)
RS232 Output with Free Data Logging Software
Ambient Target Temperature Compensation
Audible and Visible Alarms
Integral Tripod Mount
Electronic Trigger Lock
Last Temperature Recall
Data Storage for Up to 800 Temperature Points
Distance-Measuring Option Available

Beschreibung

The OS523E/24E-W Series has been discontinued. As a possible substitute, connect the Analog output, 1mV/Deg., of the IR Gun into a wireless system such as UWPC-2A.

With their powerful features, the portable and rugged high-temperature OS523E/524E Series infrared thermometers offer solutions for many non-contact temperature measurement applications. Their emissivity, adjustable in 0.01 increments, allows them to measure a variety of surfaces. A custom backlit LCD features dual digital display of the current and max, min, difference, or average temperatures simultaneously. Standard features include high and low audible and visual alarms, 1 mV/degree analog output, RS232 output, and temperature data storage.

Caution: This product and all in the series are not for use in medical evaluations. These products cannot be used to measure body temperature. They are meant for industrial and scientific purposes.

FEATURES	OS523E-1, -2, -3() (*)	OS524E() (*)
Accuracy†	±1% rdg	±1% rdg
Range	-18 to 1370°C (0 to 2500°F)	538 to 2482°C (1000 to 4500°F)
Emissivity	Adjustable	Adjustable
Backlit Dual Display	Std	Std
Distance to Spot Size Ratio	See Figure	110:1
Differential Temperature	Std	Std
Min/Max Temperature	Std	Std
Average Temperature	Std	Std
High Alarm	Std	Std
Low Alarm	Std	Std
Audible Buzzer and Indicator	Std	Std
Ambient Target Temp Comp.	Std	Std
Analogue Output	1 mV/deg	0.5 mV/deg
RS232 Output	Std	Std
Free Data Logging Software	Std	Std
Distance	Optional	Optional
Data Logging	Std	Std
Data Storage	Std	Std
Laser Sight (Built-In)	Std dot/circle (-3, dot)	Std dot/circle
Trigger Lock	Std	Std
Last Temperature Recall	Std	Std

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Wirelless Receiver - One receiver works with up to 48 Wireless instruments!

Accessories

UNIV-AC-100/240

€42,11

Lieferzeit: 1 Woche

Universal 9 V adaptor

HH-DM

€110,81

Lieferzeit: ab Lager

Distance meter (3' to 30')

OS520-RCC

Consult Sales

Lieferzeit:

Hard carrying case (standard)

OS520-SC-RCC

€48,67

Lieferzeit: 1 Woche

Hard carrying case (large)

OM-3000-SC

Consult Sales

Lieferzeit:

Soft carrying case (spare)

CAL-3-IR

Consult Sales

Lieferzeit:

NIST-traceable calibration

SC-520A

€156,59

Lieferzeit: 4 Wochen

Sighting scope

MINI-TRIPOD

€13,09

Lieferzeit: 1 Woche

Replacement MINI-TRIPOD expands 142 to 279 mm (5.6 to 11')

TRIPOD

€43,00

Lieferzeit: 1 Woche

Lightweight TRIPOD expands 305 mm to 1.1 m (12 to 45')

OM-CONV-USB

€23,30

Lieferzeit: 1 Woche

RS232 to USB cable

*Alle Preisangaben in Euro.
Anmerkung: * Add "-SC" for thermometer with sighting scope and add $100 to price. Large, hard carrying case OS520-SC-RCC and MINI-TRIPOD included. Add "-DM" for built-in distance measurement and add $75 to price. ** For 915 MHz (USA/Canada) insert “-W9”. For 868 MHz (CE models) insert “-W8”, no additional cost. Sighting scope is factory installed and aligned, not field installable!
Accuracy ±1% rdg or 2°C (3.6°F), whichever is greater.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)		(2)	(3)	(4)
OS52		E

Optionsbeschreibungen:

(1) Temperature Range Wählen Sie:
3 für -18 to 1370°C (0 to 2500°F)
4 für 538 to 2482°C (1000 to 4500°F)

(2) Distance To Spot Size Wählen Sie:
Keine (Feld leer lassen) für 110 to 1
-1 für 30 to 1
-2 für 60 to 1
-3 für 68 to 1

(3) Additional Option Wählen Sie:
Keine (Feld leer lassen) für None
-SC für Thermometer with sighting scope
-DM für Built-in distance measurement

(4) MHz Model Wählen Sie:
Keine (Feld leer lassen) für None
-W9 für 915 MHz for USA/Canada
-W8 für 868 MHz for Europe - CE

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
