Platinum Resistance Temperature Detector

1PT100FR, 1PT500FR,1PT1000FR, 2PT100FR 2PT500FR and 2PT1000FR

ZUR BESTELLTABELLE

Designed for High Vibration Use

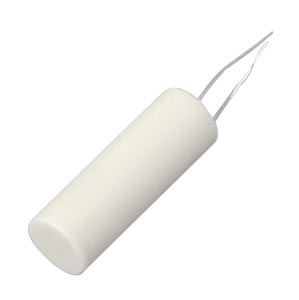

Rugged Cylindrical Element
Length: 8mm(0.31") or 13mm(.51")*. Diameters: 2.8mm(.11") or 4.5mm(.18")*
R_o = 100, 500, or 1000 Ω
α = .00385. Tolerance = ±.12% at 0°C
Single and Dual Elements
High Temperature Stability

Pt100-Temperaturfühler - Verwandte Produkte anzeigen

Beschreibung

FR series elements are designed for applications where high vibration resistance as well as high temperature stability is vital. Typical industrial applications include analytical equipment, chemical plants and mechanical equipment. Small tolerances on diameter allow problem free installation in protective tubes.

*Dimensions are ±0.3mm(.012")

Note on Assembling Omega "FR" Series RTD Elements to Extension Wires: These RTD elements are made with platinum coated nickel lead wires. Since platinum does not easily wet with most soft solders, we advise that they be spot welded or silver soldered to extension wires when required.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Price below is for 1 element

1PT100FR828

€21,71

Lieferzeit: 2 Wochen

RTD - 1 x 100 Ohms, 8 x 2.8mm length x diameter

2PT100FR828

€32,91

Lieferzeit: 1 Woche

RTD - 2 x 100 Ohms, 2.8mm diameter

*Alle Preisangaben in Euro.
Anmerkung: The measuring point on the leads is 8 mm(.31") from the end of the sensor body.
