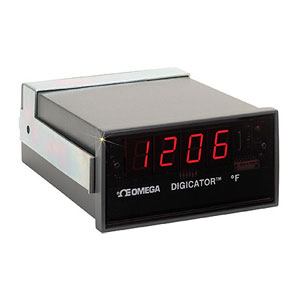

Temperature, Process, or Thermistor Panel Meters with Multi-Input Switch Box and Output Options

400B Series

This series is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of meters here or contact our sales department.
Rugged Die-Cast Aluminum Case
°F or °C Switchable
20 mm (.8") Display
Modular Construction

Beschreibung

Thermocouple, RTD and Thermistor Single Input 400B and 410B Indicators
The 400B and 410B Series measure temperatures with laboratory accuracy. Signals from thermocouples, RTD’s and thermistors can be displayed with 1°, 0.1° or 0.01° resolution. High instrument accuracy is achieved with a superior combination of low noise analog-to-digital conversion, multi-segment linearization conformity and isolated electronics. The standard resolution version, the Model 400B, has a 1° resolution (0.1° with thermistor input). The higher resolution version, Model 410B, provides a 0.1°resolution (0.01° with thermistor input). A miniature "DIP" switch, easily accessible behind the front panel, makes the °C to °F conversion a snap. You can add one option card to either the Model 400B or 410B.

Thermocouple Multi-Input 402B and 412B Indicators
The 402B and the 412B have multi-input boards that can switch between five inputs of a common input type ( e.g., 5 type K thermocouples). A row of five pushbutton switches, accessible on the front panel, permits easy switching between sensor readings. There are screw terminals located at the rear of the instrument where up to five sensors can be attached. The 402B has a standard 1° resolution. The 412B has a 0.1° resolution.

Multi-Thermocouple 403B and 415B Indicators
Specifically designed to provide easy switching between different sensors, the six-input 403B and 415B models provide selection between six different thermocouple input types from a convenient row of easy-to-operate front panel pushbuttons. These six-function models allow selection without recalibration between thermocouple types J, K, T, R, S and B.

This series is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of meters here or contact our sales department.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

400B-TC

Consult Sales

Lieferzeit:

Indicator for thermocouples

400B-RTD3

Consult Sales

Lieferzeit:

RTD indicator. 3-wire 0.00385 curve

400B-RTD4

Consult Sales

Lieferzeit:

RTD indicator. 4-wire 0.00385 curve

412B-S

Consult Sales

Lieferzeit:

Indicator for type S thermocouples

410B-E

Consult Sales

Lieferzeit:

Indicator for type E thermocouples

405B

€441,27

Lieferzeit: 4 Wochen

10-point selector switch for thermocouple input 400B & 410B models

003A

Consult Sales

Lieferzeit:

Plug-in High or low limits, digital setpoint options

*Alle Preisangaben in Euro.
Anmerkung: This series is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of meters here or contact our sales department.
