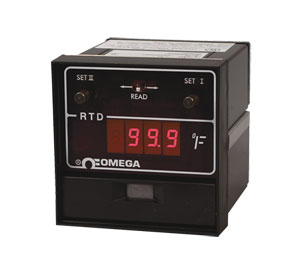

1/4 DIN RTD Digital Controllers

4200A Series

This controller is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of controllers here or contact our sales department.
High Accuracy: to 0.1% of Span
Single and Dual Setpoint Models
1.0° and 0.1° Models
Adjustable Proportion Band
Bright LED Display

Beschreibung

The OMEGA™ 4200A Series is an ideal controller for RTD applications. This quality-built linearized instrument is available in both 1.0° and 0.1° resolution models. Higher accuracies, accuracies 5 to 10 times greater than the typical 1% meter indicating controller, are achieved through a unique linearizing technique. Bright, easy-to-read LED digits present an unambiguous temperature indication. Accuracy is enhanced through 3-wire lead compensation– a feature allowing the sensor to be up to 1000' from the controller. The standard unit includes adjustable proportional band, manual reset, plus a metal 1/4 DIN case with full plug-in construction, allowing front removal of the control unit without disturbing the case and its rear wiring. The series 4200A controllers are available in single or dual setpoint models with relay output as a standard. Triac or 4 to 20 mA optional outputs are offered on the first setpoint at no additional cost. Truly a superior controller at a remarkably low price.

Model 4201A Single Setpoint Proportional Controller This versatile digital controller can be operated as a proportional controller with the adjustable bandwidth up to 3% of full span. The setpoint temperature is always available. Simply push the spring-loaded setpoint switch to the right, and the setpoint is digitally displayed. To change the setpoint, with the switch deflected to the right, adjust the knob to the right of the switch until you get the desired reading. The standard Model 4201 has an internal SPDT relay (7 amp resistive at 120 Vac). This model is also available with optional Triac or 4 to 20 mA output in place of the relay. See Options and Specifications for more information.

Model 4202A Dual Setpoint Controller The first setpoint of the Model 4202A incorporates the same features as the Model 4201A and also can be ordered with the optional Triac or 4 to 20 mA output. The second setpoint may be set at any value within the full span of the controller. It energizes an SPDT internal relay (3 amp resistive 120 Vac) which can be used as either an on-off control, a high-limit alarm, or a low-limit alarm. For an alarm with latching features, an external latching relay and push button to reset are suggested. The second setpoint is set and displayed using the same procedure as for the Model 4201A except the switch is deflected to the left and the left adjustment knob is used.

This controller is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of controllers here or contact our sales department.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

4201APF1

Consult Sales

Lieferzeit:

Controller, single setpoint, 0 to 999°F

4201APC1

Consult Sales

Lieferzeit:

Controller, single setpoint, 0 to 600°C

4202APF1

Consult Sales

Lieferzeit:

Controller, dual setpoint, 0 to 999°F

4202APC1

€906,98

Lieferzeit: 1 Woche

Controller, dual setpoint, 0 to 600°C

4201APC2

Consult Sales

Lieferzeit:

Controller, single setpoint, -199.9 to 199.9°C

4202APF2

Consult Sales

Lieferzeit:

Controller, dual setpoint, -199.9 to 199.9°F

4202APC2

Consult Sales

Lieferzeit:

Controller,dual setpoint, -199.9 to 199.9°C

*Alle Preisangaben in Euro.
Anmerkung: This controller is not CE marked and therefore not available in Europe. If you wish to find an alternative model please review our range of controllers here or contact our sales department.
