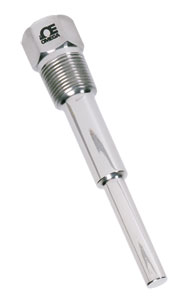

Standard Threaded Well for Industrial Glass Thermometers*

Series 445S

Standard Threaded Well for Industrial Glass Thermometers

ZUR BESTELLTABELLE

Test Bullet

Schutzrohre und Schutzrohre mit Anschlusskopf - Verwandte Produkte anzeigen

Beschreibung

Application:
Fits liquid-in-glass thermometers made to S.A.M.A. standards. Tapered bore is made 0.008" oversize to eliminate possibility of thermometer bulb expanding into the well, thus preventing removal.

Connection Size:
3/4" NPT and 1" NPT are standard. Other thread sizes are available upon request.

Discount Schedule
1-10..........Net		25-100.......................20%
11-24......10%		101 and up....Consult Sales

Protective Coatings for Thermowells:

Resist Corrosion
For Chemical Baths
Color-Coded Sensors for Process Control
Available in PFA, Epoxy and other materials.

Consult Sales Department for complete information.

Materials:
Carbon Steel (C-1018), Brass (ASTM B-16), A.I.S.I. 304, A.I.S.I. 316, Monel. Many other materials available upon request.

Additional Designs:
Other designs of wells to fit this class of thermometer are available. These include socket weld, heavy duty and flanged types.

*See Vapor Actuated Assembly on page E-38 for Additional Wells in the 445 Series

Pressure-Temperature rating–lb per square inch

Well Type	Material	Temperature - °F
Well Type	Material	70°	200°	400°	600°	800°	1000°
3/4"-445S and 3/4"-445L (See Note)	Brass	640	575	100	–	–	–
	Carbon Steel	720	690	660	630	480	210
	A.I.S.I. 304	940	850	770	740	720	625
	A.I.S.I. 316	940	940	875	850	840	700
	Monel	900	825	740	730	710	210

3/4"-445S and 3/4"-445L (See Note)	Brass	1470	1320	230	—	—	—
	Carbon Steel	1650	1590	1520	1450	1100	480
	A.I.S.I.-304	2150	1950	1770	1710	1670	1430
	A.I.S.I.-316	2150	2150	2010	1960	1920	1610
	Monel	2070	1900	1700	1690	1640	480
