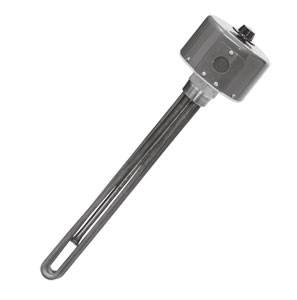

Heavy Duty Solution Water Immersion Heaters - 2½" NPT Fitting

ARMTI-3 Series

Water Immersion Heaters

^€2.489,00 ARMTI-3305

ZUR BESTELLTABELLE

Thermostat for Reliable Operation
Incoloy Sheath for Compatibility with Most Industrial Fluids
240 and 480 V Models with 3 Phase Power
3 to 18 kW
46 to 51 W/in2

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

Please Note: The integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure or temperature control should be used with these heaters to assure safe operation. See Section P for our selection of control devices.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

kW	Phase	W/in2	No. Htg. Elem.	Dim.B in(cm)	Temp Range (60-250°F) Model No.	Wt. lb(kg)	T-1 Temp Range (0-100°F) Model No.	Wt. lb(kg)
ARMTI-3 Series with General Purpose Terminal Enclosure¹
3	3	51	3	7(17)	ARMTI-3305/*	8(4)	ARMTI-3305T1/*	8(4)
4.5	3	48	3	11(30)	ARMTI-3455/*	8(4)	ARMTI-3455T1/*	8(4)
6	3	48	3	17 3/8(44)	ARMTI-3605/*	9(4)	ARMTI-3605T1/*	9(4)
7.5	3	53	3	19(48)	ARMTI-3755/*	10(5)	ARMTI-3755T1/*	10(5)
9	3	47	3	24 3/8(62)	ARMTI-3905/*	10(5)	ARMTI-3905T1/*	10(5)
12	3	46	3	32 1/4(64)	ARMTI-3120/*	11(5)	ARMTI-3120T1/*	11(5)
15	3	46	3	39 7/8(101)	ARMTI-3150/*	12(5)	ARMTI-3150T1/240	12(5)
18	3	51	3	47 3/8(120)	ARMTI-3180/*	13(6)	ARMTI-3180T1/240	13(6)
ARMTI-3 Series with Type E2 Moisture Resistant/Explosion Resistant Enclosure²
3	3	51	3	7(17)	ARMTI-3305E2/*	13(6)	ARMTI-3305E2T1/*	13(6)
4.5	3	48	3	11(30)	ARMTI-3455E2/*	13(6)	ARMTI-3455E2T1/*	13(6)
6	3	48	3	17 3/8(44)	ARMTI-3605E2/*	14(6)	ARMTI-3605E2T1/*	14(6)
7.5	3	53	3	19(48)	ARMTI-3755E2/*	15(7)	ARMTI-3755E2T1/*	15(7)
9	3	47	3	24 3/8(62)	ARMTI-3905E2/*	15(7)	ARMTI-3905E2T1/*	15(7)
12	3	46	3	32 1/4(82)	ARMTI-3120E2/*	16(7)	ARMTI-3120E2T1/*	16(7)
15	3	46	3	39 7/8(101)	ARMTI-3150E2/*	17(8)	ARMTI-3150E2T1/*	17(8)
18	3	51	3	47 3/8(120)	ARMTI-3180E2/*	18(8)	ARMTI-3180E2T1/*	18(8)

/*Insert 240 for 240 Vac or 480 for 480 Vac. *Not intended for use in hazardous areas.
1. Heaters with General Purpose Enclosures are UL Listed and CSA Certified.
2. Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified and not
intended for use in hazardous areas.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

ARMTI-3305

€2.489,00

Lieferzeit: 6 Wochen

3 kW heater, 60-250°F with a general purpose terminal enclosure

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)
ARMTI-3

Optionsbeschreibungen:

(1) Wattage Wählen Sie:
305 für 3 kW
455 für 4.5 kW
605 für 6 kW
755 für 7.5 kW
905 für 9 kW
120 für 12 kW
150 für 15 kW
180 für 18 kW

(2) Temperature Range and Enclosure Style Wählen Sie:
Keine (Feld leer lassen) für 60-250°F with a General Purpose Terminal Enclosure
T1 für for 0-100°F General Purpose Terminal Enclosure
E2 für 60-250°F with a Moisture Resistant/Explosion Resistant Enclosure
E2T1 für 0-100°F with a Moisture Resistant/Explosion Resistant Enclosure

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
