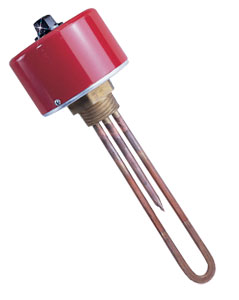

Lightweight Oil Immersion Heater with Integral Thermostat—2" NPT Steel Fitting

ARMTO-2 Series

Oil Heater, Oil Immersion Heater

^€1.966,00 ARMTO-2155/120V

ZUR BESTELLTABELLE

Built-In Thermostat— Three Temperature Ranges Available
1.5 to 6 KW
120, 208 240 or 480 V, 1 Phase
Rugged, 2 Element Design
Premium Grade Steel Sheath
Lower Watt Densities for Heating Lightweight Oils

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

Please Note: The integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure and/or temperature limit control should be used with these heaters to assure safe operation. See the Temperature section for our selection of control devices.

kW	W/in²	No. Htg. Elem.	Dim.B in(cm)	†Temp.Range 200-550°F Model No.	Temp.Range 60-250°F Model No.	Temp.Range 0-100°F Model No.
ARMTO- 2 Series with General Purpose Enclosure
1.5	24	2	11¾ (30)	ARMTO-2155/*	ARMTO-2155T2/*	ARMTO-2155T1/*
2	24	2	17¾ (45)	ARMTO-2205/*	ARMTO-2205T2/*	ARMTO-2205T1/*
2.5	26	2	19 5/8 (50)	ARMTO-2255/*	ARMTO-2255T2/*	ARMTO-2255T1/*
3	23	2	24 7/8 (63)	ARMTO-2305/*	ARMTO-2305T2/*	ARMTO-2305T1/*
4	23	2	32¾ (83)	ARMTO-2405/*	ARMTO-2405T2/*	ARMTO-2405T1/*
5	23	2	40¼ (102)	ARMTO-2505/*	ARMTO-2505T2/*	ARMTO-2505T1/*
6	23	2	47¾ (121)	ARMTO-2605/**	ARMTO-2605T2/**	ARMTO-2605T1/**
ARMTO-2 Series with Moisture Resistant/Explosion Resistant Enclosure
1.5	24	2	1¾ (30)	ARMTO-2155E2/*	ARMTO-2155E2T2/*	ARMTO-2155E2T1/*
2	24	2	17¾ (45)	ARMTO-2205E2/*	ARMTO-2205E2T2/*	ARMTO-2205E2T1/*
2.5	26	2	19 5/8 (50)	ARMTO-2255E2/*	ARMTO-2255E2T2/*	ARMTO-2255E2T1/*
3	23	2	24 7/8 (63)	ARMTO-2305E2/*	ARMTO-2305E2T2/*	ARMTO-2305E2T1/*
4	23	2	32¾ (83)	ARMTO-2405E2/*	ARMTO-2405E2T2/*	ARMTO-2405E2T1/*
5	23	2	40¼ (102)	ARMTO-2505E2/*	ARMTO-2505E2T2/*	ARMTO-2505E2T1/*
6	23	2	47¾ (121)	ARMTO-2605E2/**	ARMTO-2605E2T2/**	ARMTO-2605E2T1/**

/*Designate voltage, i.e., insert 120 for 120 Vac, 208 for 208 Vac, 240 for 240 Vac, or 480 for 480 Vac.
/** Designate voltage, ie., insert 208 for 208 Vac, 240 for 240 Vac, or 480 for 480 Vac.
†Heaters with Temperature Ranges 200-550°F are not UL listed.
Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electrical wiring according to National Electric Code. Abnormal application or use of heaters which results in excessive temperatures can create hazardous conditions which can lead to fire
Consult Section Z for data on allowable watt densities for more viscous materials.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

ARMTO-2155E2/240V

€2.617,00

Lieferzeit: 6 Wochen

1.5 kW heater, 240V

ARMTO-2305T2/120V

€2.301,00

Lieferzeit: 6 Wochen

3 kW heater, 120V

ARMTO-2205E2T2/120V

€2.955,00

Lieferzeit: 5 Wochen

2KW, heater, 120V

ARMTO-2305T1/240V

€2.301,00

Lieferzeit: 6 Wochen

3KW, heater, 240V,

ARMTO-2026E2T1/240V

€2.302,00

Lieferzeit: 6 Wochen

2.66 KW, heater, 240V,

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)		(3)
ARMTO-2			/

Optionsbeschreibungen:

(1) Wattage Wählen Sie:
155 für 1.5 kW
205 für 2 kW
255 für 2.5 kW
305 für 3 kW
405 für 4 kW
505 für 5 kW
605 für 6 kW

(2) Temperature Range and Enclosure Style Wählen Sie:
Keine (Feld leer lassen) für 200-550°F with a general purpose terminal enclosure
T1 für 0-100°F with a general purpose terminal enclosure
T2 für 60-250°F with a general purpose terminal enclosure
E2 für 200-550°F with a moisture resistant/explosion resistant enclosure
E2T1 für 0-100°F with a moisture resistant/explosion resistant enclosure
E2T2 für 60-250°F with a moisture resistant/explosion resistant enclosure

(3) Voltage Wählen Sie:
120V für 120 Vac
208V für 208 Vac
240V für 240 Vac
480V für 480 Vac

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
