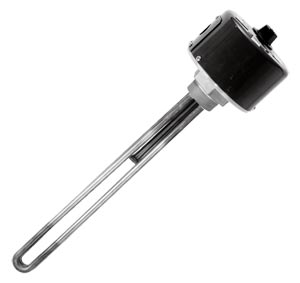

Medium Weight Oil Immersion Heater with Integral Thermostat—2" NPT Fitting

ARMTO-2 Series

Oil Immersion Heater with Integral Thermostat

^€1.723,00 ARMTO-2020/240V

ZUR BESTELLTABELLE

Steel Sheath and Low Watt Density for Heating Medium Weight Oils
Integral Thermostat Three Temperature Ranges Available
2 to 6 kW
208, 240 or 480 V, 1 Phase
2 Element Construction with 2" NPT Steel Fitting

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

APPLICATIONS
Heating medium viscosity oil — Suitable for heating medium bodied oils such as industrial gear oils or numbers 4 and 5 residual fuel oils. Heating provides low ambient temperature protection, ensuring that oil remains fluid to lubricate effectively and reduce load on gear motor drives.

Please Note: This integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure and/or temperature limit control should be used with these heaters to assure safe operation. See Section P for our selection of controllers.

kW	W/in2	No. Htg. Elem.	Dim.B in(cm)	T3 Temp.Range (200-550°F) Model No.	T2 Temp. Range (60-250°F) Model No.	T1 Temp.Range (0-100°F) Model No.	Wt. Ib(kg)
ARMTO -2 Series with General Purpose Enclosure ¹
2	15	2	24 7/8 (16)	ARMTO-2020/*	ARMTO-2020T2/*	ARMTO-2020T1/*	8 (4)
2.66	15	2	32 3/4 (16)	ARMTO-2026/*	ARMTO-2026T2/*	ARMTO-2026T1/*	9 (4)
3.33	15	2	40 1/4 (20)	ARMTO-2033/*	ARMTO-2033T2/*	ARMTO-2033T1/*	9 (4)
4	15	2	47 3/4 (23)	ARMTO-2040/**	ARMTO-2040T2/**	ARMTO-2040T1/**	10 (5)
5	15	2	57 1/2 (31)	ARMTO-2050/*	ARMTO-2050T2/*	ARMTO-2050T1/*	11 (5)
6	15	2	67 3/4 (41)	ARMTO-2060/*	ARMTO-2060T2/*	ARMTO-2060T1/*	12 (5)
ARMTO-2 Series with Moisture Tight/Explosion Resistant Enclosure ^2†
0.2	15	2	24 7/8 (16)	ARMTO-2020E2/*	ARMTO-2020E2T2/*	ARMTO-2020E2T1/*	13 (6)
2.66	15	2	32 3/4 (16)	ARMTO-2026E2/*	ARMTO-2026E2T2/*	ARMTO-2026E2T1/*	14 (6)
3.33	15	2	40 1/4 (20)	ARMTO-2033E2/*	ARMTO-2033E2T2/*	ARMTO-2033E2T1/*	14 (6)
4	15	2	47 3/4 (23)	ARMTO-2040E2/**	ARMTO-2040E2T2/**	ARMTO-2040E2T1/**	15 (7)
5	15	2	57 1/2 (31)	ARMTO-2050E2/*	ARMTO-2050E2T2/*	ARMTO-2050E2T1/*	16 (7)
6	15	2	67 3/4 (31)	ARMTO-2060E2/*	ARMTO-2060E2T2/*	ARMTO-2060E2T1/*	17 (8)

/*Designate voltage, i.e., insert 240 for 240 Vac, or 480 for 480 Vac.
/** Designate voltage, ie., insert 208 for 208 Vac, 240 for 240 Vac, or 480 for 480 Vac.
†Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electrical wiring according to National Electric Code. Abnormal application or use of heaters which in excessive temperatures can create hazardous conditions which can lead to fire Consult Section Z for data on allowable watt densities for more viscous materials.
1 Heaters with General Purpose Enclosures are UL Listed with T1 or T2 Temps and CSA Certified with T1, T2 or T3 Temps.
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified with T1, T2 or T3 Temps.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

ARMTO-2020/240V

€1.723,00

Lieferzeit: 6 Wochen

2 kW heater, 200-550°F with a general purpose terminal enclosure

ARMTO-2020T1/480V

Consult Sales

Lieferzeit:

2 kW heater, 0-100°F with a general purpose terminal enclosure

ARMTO-2040T2/208V

€2.199,00

Lieferzeit: 6 Wochen

4 kW heater, 60-250°F with a general purpose terminal enclosure

ARMTO-2050E2T2/240V

Consult Sales

Lieferzeit:

5 kW heater, 60-250°F with a moisture tight/explosion resistant enclosure

*Alle Preisangaben in Euro.
Ordering Example: (1) ARMTO-2020/240V 2 kW heater with a thermostat range of 200-550°F powered by 240 Vac, €1.723,00

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)		(3)
ARMTO-2			/

Optionsbeschreibungen:

(1) Wattage Wählen Sie:
020 für 2 kW
026 für 2.66 kW
033 für 3.33 kW
040 für 4 kW
050 für 5 kW
060 für 6 kW

(2) Temperature Range and Enclosure Style Wählen Sie:
Keine (Feld leer lassen) für 200-550°F with a general purpose terminal enclosure
T1 für 0-100°F with a general purpose terminal enclosure
T2 für 60-250°F with a general purpose terminal enclosure
E2 für 200-550°F with a moisture tight/explosion resistant enclosure
E2T1 für 0-100°F with a moisture tight/explosion resistant enclosure
E2T2 für 60-250°F with a moisture tight/explosion resistant enclosure

(3) Voltage Wählen Sie:
208V für 208 Vac
240V für 240 Vac
480V für 480 Vac

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
