Conductivity Cells

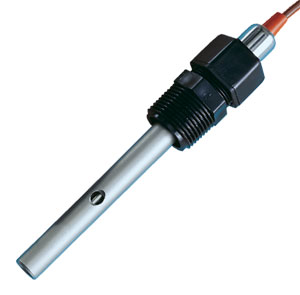

CDCE-90 Series

Conductivity Cells for CDCN-90A, CDCN-91, CDTX-90, and CDCN-5800 | CDCE-90 Series

493,06 CDCE-90-001

  • Compatible with CDCN-90A, CDCN-91, CDTX-90A, CDCN-5800
  • Fitting Material:
    Polypropylene
  • Electrodes: 316 SS
Leitfähigkeitsmesstechnik - Verwandte Produkte anzeigen

Beschreibung

SPECIFICATIONS
CDCE-90-001, CDCE-90-01, CDCE-90-1

Cell:
    CDCE-90-001: 0.01
    CDCE-90-01: 0.1
    CDCE-90-1: 1.0
Conductivity Range:
    CDCE-90-001: 0.010 to 100 µS (10 KΩ to 100 MΩ)
    CDCE-90-01: 1 to 1000 µS
    CDCE-90-1: 10 to 10,000 µS
Temperature Compensation: Pt1000
Wetted Materials:
    O-Rings: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Standard Fitting: Polypropylene
    Max. Pressure: 6.9 bar (100 psi)
    Max. Temperature: 100°C (212°F)
Optional Fitting: 316 SS ½ NPT
    Max Pressure: 13.8 bar (200 psi)
    Max Temperature: 120°C (248°F)

CDCE-90-10
Cell Constant:
10.0
Conductivity Range: 100 to 200,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: CPVC
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/Temperature: 100 psig @ 95°C (203°F)

CDCE-90-20B
Cell Constant:
20.0
Conductivity Range: 200 to 400,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: PEEK
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/ Temperature: 100 psig @ 150°C (302°F)

CDCE-90S-001, CDCE-90S-01, CDCE-90S-1
Cell:

    CDCE-90S-001: 0.01
    CDCE-90S-01: 0.1
    CDCE-90S-1: 1.0
Conductivity Range:
    CDCE-90S-001: 0.010 to 100 µS (10 KΩ to 100 MΩ)
    CDCE-90S-01: 1 to 1000 µS
    CDCE-90S-1: 10 to 10,000 µS
Sanitary Fitting Size: 1, 11/2, 2"
Temperature Compensation: Pt1000
Wetted Materials:
    O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS or titanium
Sanitary Fitting: 316 SS or titanium
Maximum Pressure: 6.9 bar (100 psi)
Maximum Temperature: 120°C (248°F)
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
3/4" Cells
CDCE-90-001
493,06
Lieferzeit: 15 Wochen

Cell Constant: 0.01, Conductivity Range: 0.055 to 100 µS
CDCE-90-01
493,06
Lieferzeit: 2 Wochen

Cell Constant: 0.1, Conductivity Range: 1 to 1000 µS
CDCE-90-1
493,06
Lieferzeit: 2 Wochen

Cell Constant: 1.0, Conductivity Range: 10 to 10,000 µS
CDCE-90-10
819,42
Lieferzeit: 15 Wochen

Cell Constant: 10.0, Conductivity Range: 100 to 200,000 µS
CDCE-90-20B
1.063,00
Lieferzeit: 15 Wochen

Cell Constant: 20.0, Conductivity Range: 200 to 400,000 µS, PEEK insulator material
316SS Cells with 1.5" Tri-Grip™ Sanitary Fitting
CDCE-90S-001-S15
1.144,00
Lieferzeit: 15 Wochen

Cell Constant: 0.01, 316SS 1.5" Tri-Grip™ Sanitary
CDCE-90S-1-S15
1.041,00
Lieferzeit: 9 Wochen

Cell Constant: 1, 316SS 1.5" Tri-Grip™ Sanitary
Titanium Cells with 1.5" Tri-Grip™ Sanitary Fitting
CDCE-90S-001-T15
Consult Sales
Lieferzeit:


Cell Constant: 0.01, Titanium 1.5" Tri-Grip™ Sanitary
316SS Cells with 2.0" Tri-Grip™ Sanitary Fitting
CDCE-90S-01-S20
Consult Sales
Lieferzeit:


Cell Constant: 0.1, 316 SS 2.0" Tri-Grip™ Sanitary
CDCE-90S-1-S20
1.225,00
Lieferzeit: 9 Wochen

Cell Constant: 1, 316SS 2.0" Tri-Grip™ Sanitary
Compatible Instrumentation
CDCN-91
€1.536,83
Lieferzeit: 1 Woche

Conductivity Controller
*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator's manual.

For extended cable add "-100" to model number and consult Sales for price (not available on the CDCE-90-20)


Ordering Example: (1) CDCE-90-001 Cell Constant: 10, Conductivity Range: 100 to 200,000 µS, €493,06
