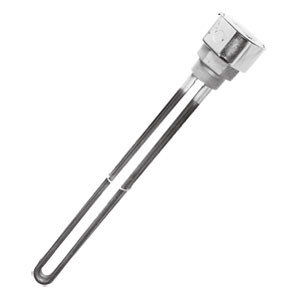

Compact 3 Element Immersion Heater

CH-SD Series

^€1.641,00 CH-SD-5083

ZUR BESTELLTABELLE

Incoloy® Sheath for Compatibility with More Difficult Clean Liquids
2 NPT Brass Screwplug with Compact 3 Element Design
5 to 10 kw
General Purpose, NEMA-1 Rated Enclosure

Beschreibung

The OMEGALUX™ CH-SD Series features a compact 3 element heater design with a 2" brass screw plug. The Incoloy sheath allows compatibility with difficult clean liquids. A popular application for CH-SD Series is heating for industrial dishwashing equipment.
Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See the Temperature Section for our selection of process controllers.
CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.

SPECIFICATIONS
Wattage: 5 to 10 kW
Power: 208, 240, or 480V
Sheath: 0.430" (1 cm) diameter copper
Screw Plug: NPT brass 2"
Watt Density: 50 W/in2
Enclosure: Compact general purpose

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

CH-SD-5083

€1.641,00

Lieferzeit: 5 Wochen

5kW, 208V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-5043

€1.641,00

Lieferzeit: 5 Wochen

5kW, 240V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-5053

€1.641,00

Lieferzeit: 5 Wochen

5kW, 480V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-508

Consult Sales

Lieferzeit:

5kW, 208V, 1 phase, immersion heater, 2in NPT screw plug

CH-SD-504

€1.641,00

Lieferzeit: 5 Wochen

5kW, 240V, 1 phase, immersion heater, 2in NPT screw plug

CH-SD-7583

€1.680,00

Lieferzeit: 5 Wochen

7.5kW, 208V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-7543

€1.680,00

Lieferzeit: 6 Wochen

7.5kW, 240V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-10083

€2.266,00

Lieferzeit: 5 Wochen

10kW, 208V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-10043

€2.134,00

Lieferzeit: 6 Wochen

10kW, 240V, 3 phase, immersion heater, 2in NPT screw plug

CH-SD-10053

€2.266,00

Lieferzeit: 5 Wochen

10kW, 480V, 3 phase, immersion heater, 2in NPT screw plug

*Alle Preisangaben in Euro.
