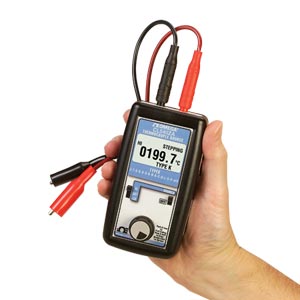

Thermocouple Simulator

CL540ZA

^€1.194,60 CL540ZA

ZUR BESTELLTABELLE

Thermocouple simulator compatible with 14 Thermocouple Types
Easy-to-Read Backlight Display
Easily Change Thermocouple Types and Scale
Calibrate Directly in Temperature (°C or °F)
Compatible with All Process Instruments

Kalibratoren - Verwandte Produkte anzeigen

Beschreibung

With the Thermocouple simulator CL540ZA you can check and calibrate all your thermocouple instruments. Connect via a miniature thermocouple connector on the top end of the source. Use your own thermocouple wire connectors or order one of the cable accessories for easy operation out of the box. Easy to operate even in the dark areas of the plant with the backlit display. Stop carrying around a millivolt source and thermocouple tables. The CL540ZA works with the thermocouples you use including Types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) and P (Platinel II). Easily set any value quickly to within 0.1° with the adjustable digital potentiometer “DIAL” plus store any three temperatures for instant recall with the selector switch. You can also calibrate from -13.000 to +80.000 mV. Connect directly to the thermocouple inputs of smart transmitters, PLCs, controllers and multichannel recorders and verify their outputs or displays.

SPECIFICATIONS
Accuracy: ±(0.015% of Reading + 0.006 mV)
Cold Junction Compensation: ±0.25°C (±0.45°F)
Operating Temperature Range: -25 to 60°C (-10 to 140°F)
Millivolt Range: -13.000 to 80.000 mV
Relative Humidity Range: 10% ≤ RH ≤ 90% 0 to 35°C (32 to 95°F), non-condensing. 10% ≤ RH ≤ 70% 35 to 60°C (95 to 140°F), non-condensing
Dimensions: 126 L x 69 W x 45 mm D (4.96 x 2.73 x 1.79")
    With Boot: 144 L x 78 W x 52 mm D (5.67 x 3.06 x 2.05")
Weight: 238 g (8.4 oz) (including batteries)
    With Boot: 311.8 g (11 oz) (including batteries)
Batteries: Four "AA" Alkaline 1.5V (included)
Battery Life: 50 hours
Low Battery: Low battery indication with nominal 1 hour of operation left
Protection Against Misconnection: Over-voltage protection to 60 Vdc (rated for 30 seconds)
Display: High contrast graphic liquid crystal display. LED backlighting for use in low lit areas
Source
    Output Impedance: < 0.3 Ω
    Source Current: > 20 mA (drives 80 mV into 10 Ω)
    Noise: ≤4 microvolts p-p for frequencies of 10 Hz or below

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

CL540ZA

€1.194,60

Lieferzeit: 1 Woche

Thermocouple simulator

Accessories

020-0209

€106,70

Lieferzeit: 1 Woche

Rubber boot

CL-300-CABLE-J-2

€17,16

Lieferzeit: 6 Wochen

0.6 m (2') thermocouple cable, SMP male to spade lugs, Type J

CL-300-CABLE-J-10

€34,29

Lieferzeit: 1 Woche

3 m (10') thermocouple cable, SMP male to spade lugs, Type J

CL-300-RSC-J-2

€34,29

Lieferzeit: 1 Woche

Retractable cable 0.6 m (2'), Type J

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with NIST certificate, one red and black lead set with retractable shield banana plugs with alligator clips, 4 "AA" alkaline batteries, and operator’s manual.
