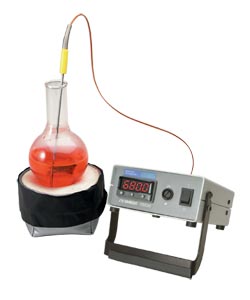

Compact CN9500 Controller in Rugged Benchtop Case

CSC32

These benchtop controllers are not CE marked and therefore not available for sale in Europe.
4-Digit Display, 1 or 0.1° Resolution
Full Autotune PID Heat-Cool Control
Single Ramp and Soak Capability
High Accuracy (± 0.25% full scale ± 1°C)
Model for 9 Thermocouple Types or 100Ω 2-lead RTD, or 0-20 mVdc/0-20 mAdc Process Signals
Two 5 Amp 120 Vac SSR Outputs
Second Output May Have Control Function or Be One of Five Alarm Types
Security Lockouts

OPTIONS
RS-232 or RS-485 MODBUS Communications
CN9-SW Communications Software is free when bundled with the CSC32 with digital communications

Beschreibung

The CSC32 series compact benchtop controllers are ideal for laboratory use and applications requiring portable temperature and process control. Pre-wired input and output receptacles in the rear of the case enable quick and easy connections to power, input, power output and digital communications. These benchtop controllers are factory configured and calibrated for a dedicated input type by model number.

The 1/32 DIN CN9500 controller used in this benchtop controller series can be programmed for either On/Off, or PID Autotune Control (with autotune Feature) via the front panel or through the use of a PC and CN9-SW communications software.

CN9-SW software is designed to interface with the CN9300, CN9400, CN9500 and CSC32 Series benchtop controllers with optional communication hardware. Benefits:
• Time saving benefit and convenience of remotely configuring and adjusting units.
• Saving and retrieving settings to and from files.
• Highly flexible logging and “real time” charting capability for providing hard copy QA records for ISO-9000 and other management purposes.
• Software is capable of logging readings from up to 128 instruments which it stores in data files.
• The data can be exported into text files in Comma Separated Variable format.
• In addition, up to 12 controllers can be displayed on a single chart, or individual charts can be set up for each instrument.
• A Virtual full color chart recorder can log process variables such as: °C, °F, Bar, PSI, pH, rH, or user defined engineering units

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

CSC32J

Consult Sales

Lieferzeit:

Benchtop controller, type J

CSC32K-C2

Consult Sales

Lieferzeit:

Benchtop controller, type K input and RS-232 communications option

CSC32T-C4

Consult Sales

Lieferzeit:

Benchtop controller, type T input and RS-485 communications option

CSC32E

Consult Sales

Lieferzeit:

Benchtop controller, type E input

CSC32R-C4

Consult Sales

Lieferzeit:

Benchtop controller, type R input and RS-485 communications option

CSC32S-C2

Consult Sales

Lieferzeit:

Benchtop controller, type S input and RS-232 communications option

CSC32N

Consult Sales

Lieferzeit:

Benchtop controller, type N input

CSC32RTD-C4

Consult Sales

Lieferzeit:

Benchtop controller, type RTD input and RS-485 communications option

*Alle Preisangaben in Euro.
Anmerkung: This protocol manual provides the address information necessary to communicate with the CN9300/CN9400/CN9500 and CSC32 Series, with communications options installed, when interacting with custom or other commercially available software.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)
CSC32

Optionsbeschreibungen:

(1) Input Type Wählen Sie:
J für Iron-Constantan
K für CHROMEGA™-ALOMEGA™
T für Copper-Constantan
E für CHROMEGA™-Constantan
R für Pt-13%Rh/Pt
S für Pt-10%Rh/Pt
N für OMEGA-P™-OMEGA-N™
RTD für 100 ohm Pt/2-Wire/alpha = .00385
MA für Linear Current
MV für Linear Voltage

(2) Communications Options Wählen Sie:
Keine (Feld leer lassen) für Standard Unit
-C2 für RS-232 Communications
-C4 für RS-485 Communications

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
