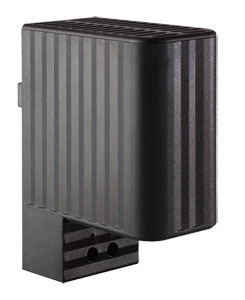

Touch-Safe Small Heater 10 W, 20 W

CSK060 Series

Enclosure Heaters

^€51,14 CSK06040

ZUR BESTELLTABELLE

Low Surface Temperature
Double Insulated (Plastic Housing)
Wide Voltage Range
Temperature Limiting
DIN Rail Mountable

Heizgeräte - Verwandte Produkte anzeigen

Beschreibung

These heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

Specifications
Operating Voltage: 115 to 240 Vac/Vdc* (min 110V, max 265V)
Heating Element: PTC resistor: temperature limiting
Surface Temperature: <85°C, (according to VDE 0100), except upper protective grille
Connection: 2-pole terminal 2.5 mm², torque 0.8 Nm max
Casing: Plastic according to UL94 V-0, black
Dimensions: 98 x 38 x 75 mm
Mounting: Clip for 35 mm DIN rail, EN 50022
Fitting Position: Vertical
Operating/Storage Temperature: -45 to 70°C
Protection Type/Protection Class: IP20/II (double insulated)
Approvals: VDE + UL File No. E150057 (according to UL499 in combination with UL508A)

* Operating with voltages below 140 Vac/Vdc reduces heating performance by approximately 10%.

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

CSK06030

€55,32

Lieferzeit: 1 Woche

Enclosure heater, 20 W, 115 to 240 Vac/Vdc

CSK06040

€51,14

Lieferzeit: 18 Wochen

Enclosure heater, 10 W, 115 to 240 Vac/Vdc

*Alle Preisangaben in Euro.
Anmerkung: Comes with operator’s manual.
Ordering Example: (1) CSK06030 Enclosure heater, €55,32
