Dissolved Oxygen Meter with Real Time SD Card Data Logger - Discontinued

DOH-SD1

Dissolved Oxygen Meter with Real Time SD Card Data Logger | DOH-SD1

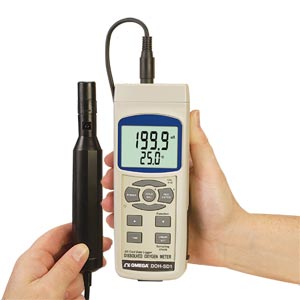

Dissolved Oxygen Meter with Real Time SD Card Data Logger

1 year warranty CE
  • LCD with Green Light Backlighting
  • Real Time SD Memory Card Data Logger (SD Card Included)
  • Altitude and Salt Adjustments
  • RS232/USB Interface (with Optional Cable)
  • Automatic Temperature Compensation

Beschreibung

Discontinued. Replaced by DOH-10.

The OMEGA™ DOH-SD1 is innovative and easy to operate. What sets the DOH-SD1 apart from other dissolved oxygen meters is that it incorporates a real-time SD card data logger. The DOH-SD1 measures dissolved oxygen and has adjustments for altitude and salt. Download data from the SD card into an Excel spreadsheet. This allows the user to do further data or graphical analysis without special software. The DOH-SD1 has a wide variety of applications from water conditioning, aquariums, and fish hatcheries to food processing, educational and other laboratories.

SPECIFICATIONS
Display: 52 x 38 mm (2.04 x 1.5") LCD with switchable green backlight
Measurement:
Dissolved Oxygen: 0 to 20 mg/L
Air Oxygen: Reference only
Sampling Time:
Auto: 1 second to 8 hrs 59 min 59 sec
Manual: Push the data logger button once will save data one time
Memory Card: SD memory card (with optional SD card)
Display Update: @ 1 second
Data Output (RS232/USB): With optional cable/software
Operating Temperature: 0 to 50°C (32 to 122°F)
Operating Humidity: Less than 85% RH
Power: 6 "AAA" alkaline batteries (included), or 9V power adaptor (optional)
Current Draw: 14 mA DC (without SD card or back light), 49 mA (all functions)
Weight:
    Meter: 489 g (1.08 lb)
    Probe: 335 g (0.74 lb)
Dimensions:
    Instrument: 177 L x 68 W x 45 mm D (6.96 x 2.67 x 1.77")
    Probe: 28 dia x 190 mm (1.1 x 7.48")
Measurement and Range:
    Dissolved Oxygen: 0 to 20.0 mg/L (liter)
    Oxygen in Air: 0 to 100.0% (reference only)
    Temperature: 0 to 50°C (32 to 122°F)
Resolution:
    Dissolved Oxygen: 0.1 mg/L
    Oxygen in Air: 0.1%
    Temperature: 0.1°C (32.18°F)
Accuracy:
    Dissolved Oxygen: ±0.4 mg/L
    Oxygen in Air: ±0.7%
Temperature: ±0.8°C (1.5°F)
Compensation:
    Automatic Temperature: 0 to 50°C (32 to 122°F)
    Adjustable Salt: 0 to 50%
    Elevation: 0 to 8900 meters
Oxygen Probe: Polarographic
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung

DOH-SD1
Consult Sales
Lieferzeit:


Data logging dissolved oxygen meter with SD card
Accessories
Click to expand/minimize a list of what others bought with theSW-U101-WIN
SW-U101-WIN
€179,47
Lieferzeit: 1 Woche

Software for data logging from meters
Click to expand/minimize a list of what others bought with theHC-SD
HC-SD
€45,01
Lieferzeit: 1 Woche

Replacement hard case
Click to expand/minimize a list of what others bought with theSC-SD
SC-SD
€23,97
Lieferzeit: 1 Woche

Soft case

ADAPTER-SD-UK
Consult Sales
Lieferzeit:


Optional AC adaptor with 3-pin UK plug
Click to expand/minimize a list of what others bought with theADAPTER-SD
ADAPTER-SD
€31,07
Lieferzeit: ab Lager

Optional AC adaptor with 2-pin EU and USA plugs
Click to expand/minimize a list of what others bought with theUSB-SD
USB-SD
€100,87
Lieferzeit: 1 Woche

USB cable (SW-U101-WIN software required)
Click to expand/minimize a list of what others bought with theRS232-SD
RS232-SD
€37,56
Lieferzeit: 1 Woche

RS232 cable (SW-U101-WIN software required)

DOE-SD1
Consult Sales
Lieferzeit:


Replacement dissolved oxygen probe
*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator’s manual, probe, spare probe head, electrolyte, 2 GB SD card, hard carrying case and 6 “AAA” batteries.
