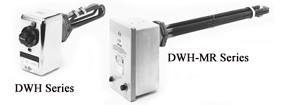

Screw Plug Immersion Heaters with Integral Thermostat for Commercial Dishwashers

DWH & DWH-MR Series

Built-In Adjustable Thermostat
All Models UL Listed
2" NPT Screw
Incoloy Sheath
Rugged, Premium Quality

Beschreibung

FEATURES
Built-in adjustable thermostat. DWH has an externally adjustable knob.
Overheat cutout. Thermostat setting determines cutout temperature on DWH. Cutout on DWH-MR has manual reset.
Built-in contactoron DWH-MR only.
Moisture & spray resistant gasketed terminal cover on DWH-MR only.
Pilot light and ON/OFF switch on DWH-MR only. DWH has pilot light and adjustable thermostat knob.
Optional thin wall mounting up to 1/4" thick with 23/8" diameter opening. Clamping nut and gaskets are included.
208 and 240 V units completely wired. 480 V units require 120 V control circuit. SPECIFICATIONS Wattage: 3 to 15 kW Power: 120, 208, 240 or 480 V; 1 phase Watt Density: 51.6-56 W/in2 Thermostat Temperature Range: DWH Series, 60-250°F, DWH-MR Series 100-210°F.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

DWH-5/208/3P

Consult Sales

Lieferzeit:

5kW, 208 Vac, 3 phase

DWH-5/240

Consult Sales

Lieferzeit:

5kW, 240 Vac, 1phase

*Alle Preisangaben in Euro.
Anmerkung: For more details go to the related links on the bottom of the page and click on download

CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.
