ELC Programmable Logic Controllers (PLCs)

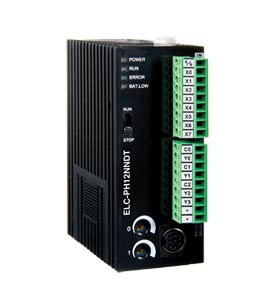

ELC-PH12NNDT

High-Speed Counters and Pulse Outputs (100 KHz)
8 Digital Inputs, 4 Digital Outputs
Expandable to 256 I/O With Expansion Modules
Half the Size of Most PLCs
Powerful Instruction Set
7.9K Program Steps
Real-Time Clock/Calendar
Built-In Potentiometers
High-level Network Access: MODBUS® TCP, DeviceNet and Profibus
Remote I/O Modules for Analog I/O, Digital I/O, Thermocouples and RTDs

Beschreibung

SPECIFICATIONS

ELECTRICAL/EMC
ESD Immunity: 8 kV air discharge
EFT Immunity:
    Power Line: 2 kV
    Digital I/O: 1 kV
Analog and Communication I/O: 250V
Damped-Oscillatory Wave:
    Power Line: 1 kV
    Digital I/O: 1 kV
RS Immunity: 26 MHz to 1 GHz, 10V/m

OTHER APPROVALS
Agency Certifications: UL 508, cUL, CE, Class 1, Div 2
Height: 90 mm (3.54")
Width: 37.4 mm (1.47")
Depth: 60 mm (2.36")
Approx Weight: 0.158 kg (0.348 lb)

ENVIRONMENTAL RATINGS TRANSPORTATION AND STORAGE
Temperature: -25 to 70°C (-13 to 158°F)
Humidity: 5 to 95%

OPERATING
Temperature: 0 to 55°C (32 to 131°F)
Humidity: 50 to 95%
Power Supply Voltage:
    ELC: 24 Vdc (-15 to 20%) with DC input reverse polarity protection
    Expansion Unit: Supplied by the ELC
Power Consumption: 3 to 6 W
Insulation Resistance: >5 MΩ @ 500 Vdc, between all inputs/outputs

DC INPUT POINT ELECTRICAL
Input Type: DC (SINK or SOURCE)
Input Current: 24 Vdc, 5 mA
Active Level:
    OFF/ON: Above 16 Vdc
    ON/OFF: Below 14.4 Vdc
Response Time:
    X0-X5: 10 mS (or up to 10,000 mS, setting by D1020)
    X10, X11: 4.7 ìS (or up to 1000 times, setting by D1021)

DC OUTPUT POINT ELECTRICAL
Maximum Loading:
    Y0, Y1: 9W/1 point
    Y10, Y11: 0.9W/1 point
Response Time:
    Y0, Y1 OFF/ON: <20µS
    Y0, Y1 ON/OFF: <30µS
    Y10, Y11 OFF/ON: <1µS
    Y10, Y11 ON/OFF: <1µS
Maximum I/O: 256 (128 in/128 out); any number of modules
I/O Type: 12 (8 in/4 out, digital)
DC In Sink/Source: Yes
Execution Speed: Basic commands— 2 µsec’s min
Program Language: Boolean + ladder logic + SFC
Program Capacity: 7920 steps
Data Memory Capacity: 5000 Words
Index Registers: 8 words
File Memory Capacity: 1600 words
Commands: 32 basic/168 advanced
Floating Point: Yes
SFC Commands: 1024 steps
Timers: 256 (1 to 100 ms)
Counters: 250 (16 bit/32 bit/up/down)
High Speed Counters: 1 (14 modes), 100 kHz
Pulse Output: 2 channels, 100 kHz
Master Control Loop: 8 loops
Subroutines: 256 subroutines
Interrupts: 15 (external/time base/HS CNTR /comm)
Real-Time Clock/Calendar: Built-in
Expansion Modules: Digital, analog, thermocouple, RTD, motion control
Serial Ports: 2 (one RS232, one RS485)

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

ELC-PH12NNDT

Consult Sales

Lieferzeit:

8 DC in/4 digital out, high-speed counters/outputs, clock/calendar

Digital I/O Expansion Modules

ELC-EX06NNNI

Consult Sales

Lieferzeit:

6 high-current relay outputs (6 A)

ELC-EX08NNAN

Consult Sales

Lieferzeit:

8 AC Inputs

ELC-EX08NNDN

Consult Sales

Lieferzeit:

8 DC Inputs

ELC-EX08NNNR

Consult Sales

Lieferzeit:

8 relay outputs (1.5 A)

ELC-EX08NNDR

Consult Sales

Lieferzeit:

4 DC inputs, 4 relay outputs

ELC-EX08NNDT

Consult Sales

Lieferzeit:

4 DC inputs, 4 transistor outputs

ELC-EX08NNNT

Consult Sales

Lieferzeit:

8 transistor outputs

ELC-EX08NNSN

Consult Sales

Lieferzeit:

8 switch inputs

ELC-EX16NNDR

Consult Sales

Lieferzeit:

8 DC inputs, 8 relay outputs

ELC-EX16NNDT

Consult Sales

Lieferzeit:

8 DC inputs, 8 transistor outputs

Analog I/O Expansion Modules

ELC-AN04ANNN

Consult Sales

Lieferzeit:

4 analog inputs

ELC-AN02NANN

Consult Sales

Lieferzeit:

2 analog outputs

ELC-AN04NANN

€558,24

Lieferzeit: 7 Wochen

4 analog outputs

ELC-AN06AANN

Consult Sales

Lieferzeit:

4 analog inputs, 2 analog outputs

ELC-TC04ANNN

€611,05

Lieferzeit: 1 Woche

4 thermocouple inputs, Types J, K, R, S, T

ELC-PT04ANNN

€455,80

Lieferzeit: 1 Woche

4 platinum RTD inputs, Pt100

Accessories

ELCSTARTKIT1

Consult Sales

Lieferzeit:

Includes ELC-PA10AADR, ELC-PS01, ELC-GP04, ELC-CBPCELC3, ELC-CBPCGP3, ELCSOFT, ELCSOFTGP

ELC-485APTR

Consult Sales

Lieferzeit:

RS485 easy connect adaptor

ELC-ACPGMXFR

Consult Sales

Lieferzeit:

Program transfer module for ELC controllers

ELC-ACCOVER

Consult Sales

Lieferzeit:

Plate mount for specialty modules

ELC-PS01

Consult Sales

Lieferzeit:

ELC DC power supply, 24V, 1 A

ELC-PS02

Consult Sales

Lieferzeit:

ELC DC power supply, 24V, 2 A

ELC-HHP

Consult Sales

Lieferzeit:

Hand-held programmer for ELC controllers

XBANS3575P

€19,20

Lieferzeit: 1 Woche

DIN rail, 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6'), slotted

XBANS3575U

Consult Sales

Lieferzeit:

DIN rail, 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6'), solid

XBANS3515P

Consult Sales

Lieferzeit:

DIN rail, 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6'), slotted

XBANS3515U

€35,18

Lieferzeit: 1 Woche

DIN rail, 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6'), solid

XBANS3575PL

€31,52

Lieferzeit: 1 Woche

DIN rail, 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6'), solid, aluminum

Cables

ELC-CBPCELC1

Consult Sales

Lieferzeit:

ELC programming/communications cable, 1 m (3.3') length

ELC-CBPCELC3

Consult Sales

Lieferzeit:

ELC programming/communications cable, 3 m (9.8') length

*Alle Preisangaben in Euro.
Ordering Example: (1) ELCSOFT Programming software, €448,57
