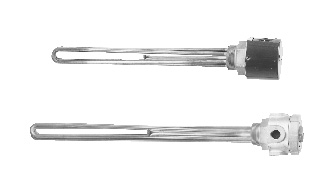

2 inch NPT Brass Screw Plug Immersion Heaters for Clean Water Applications

STYLE EMT-3

Screw Plug Immersion Heaters for Clean Water Applications

^€614,67 EMT-303/240

ZUR BESTELLTABELLE

2" NPT Brass Screw Plug
Copper Sheath Elements
High Watt Density (61 - 67 W/In2)
3 - 12 kW
Without Thermostat
240 and 480 Volt, Three Phase
General Purpose or Moisture Resistant/ Explosion Resistant Terminal Enclosure

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

E1 General Purpose¹		E2 Moisture Resistant/ Explosion Resistant²		kW	Volts	Phase	W/In2	No. Elem.	DIM B (In.)
Model No.	Wt.(Lb.)	Model No.	Wt.(Lb.)	kW	Volts	Phase	W/In2	No. Elem.	DIM B (In.)
EMT-303/240 EMT-303/480	5 5	EMT-303E2/240 EMT-303E2/480	8 8	3 3	240 480	3 3	67 67	3 3	7 7
EMT-306/240 EMT-306/480	6 6	EMT-306E2/240 EMT-306E2/480	9 9	6 6	240 480	3 3	67 67	3 3	12 12
EMT-309/240 EMT-309/480	7 7	EMT-309E2/240 EMT-309E2/480	10 10	9 9	240 480	3 3	65 65	3 3	17 1/2 17 1/2
EMT-312/240 EMT-312/480	8 8	EMT-312E2/240 EMT-312E2/480	11 11	12 12	240 480	3 3	61 61	3 3	24 24

1. Heaters with General Purpose Enclosures are UL Listed and CSA Certified.
2. Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

E1 General Purpose

EMT-303/240

€614,67

Lieferzeit: 6 Wochen

E1 GENERAL PURPOSE HEATER , 240 V, 3 kW

EMT-306/240

€638,12

Lieferzeit: 5 Wochen

E1 GENERAL PURPOSE HEATER , 240 V, 6 kW

EMT-309/240

€904,01

Lieferzeit: 6 Wochen

E1 GENERAL PURPOSE HEATER , 240 V, 9 kW

EMT-312/240

€1.474,00

Lieferzeit: 1 Woche

E1 GENERAL PURPOSE HEATER , 240 V, 12 kW

E2 Moisture Resistant/Explosion Resistant

EMT-303E2/240

€961,54

Lieferzeit: 1 Woche

E2 HEATER, 240 V, 3 kW

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Ordering Example: (1) EMT-306/480 480 V, 6 kW, 3-Phase General Purpose, €638,12
