integral or remote signal conditioner

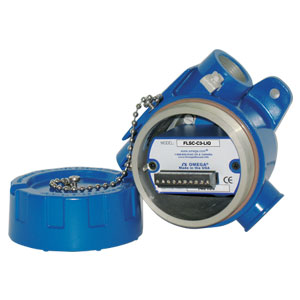

FLSC-C3-LIQ Series

^€1.098,00 FLSC-C3-LIQ

ZUR BESTELLTABELLE

DC or AC Powered
Pulse and Analog Outputs
High or Low Alarms (Optional)
20 Point Linearization
Factory Configuration Available
Windows® Configuration Software*

Turbinen- und Flügelrad-Durchflussmesser - Verwandte Produkte anzeigen

Beschreibung

The FLSC-C3-LIQ is a DC powered, microprocessor controlled transmitter. It outputs a pulse scaled per unit of flow, and analog signal proportional to flow rate. The FLSC-C3-LIQ-AL can be configured with high or low alarms and are designed for integral mounting to the FTB-100, FTB-200, and FTB-400 Series liquid turbines.

Specifications
Input Signal Type: Magnetic pickup, MCP pickup, contact closure, pulse
Input Frequency Range: 0.2 Hz to 4 KHz
Signal Level: 10 mV rms to 30 Vdc
Power Supply: 13 to 30 Vdc reverse polarity protection
Analog Output: 4 to 20 mA, 1 to 5V 24 mA overflow condition
Load Resistance: Maximum 650 Ω at 24 Vdc
Accuracy: ±0.02% of full scale
Temperature Drift: 40 ppm/degree C
Pulse Output: 0 to 5V, 0 to 10V, open collector, AC square. Internal pull up 10 kΩ. Recommended minimum load resistance 50 kΩ
Pulse Scaling: Divide by 1, 10 or 100 per flow unit Hi/Lo Alarm (-AL Model) Optional: Relay (2A, 30 Vdc), 0 to 5V, open collector (0.5A, 30V)
Communications: RS232 port for configuration and diagnostics
Operating Temperature: -40 to 85°C (-40 to 185°F)

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

FLSC-C3-LIQ

€1.098,00

Lieferzeit: 1 Woche

DC powered signal conditioner 4 to 20 mA

FLSC-C3-AL-LIQ

€1.392,00

Lieferzeit: 8 Wochen

DC powered signal conditioner 4 to 20 mA, alarm

OM-CONV-USB

€23,30

Lieferzeit: 1 Woche

USB to RS232 converter

FLSC-C-CABLE

€44,14

Lieferzeit: 3 Wochen

Molex to 9-pin "D" connector

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator’s manual.

For units with 100 to 240 Vac power, add suffix "-VAC" to model number

* Available for free download, cable sold separately.
