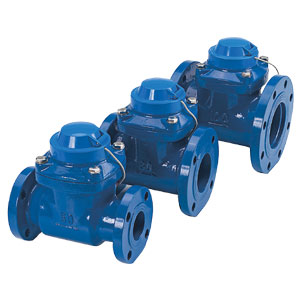

TURBINE METER WITH AVAILABLE PULSE OUTPUT

FTB-630 Series

ZUR BESTELLTABELLE

Non-Resettable Mechanical Totalizer
2, 3, 4, 6, and 8" Pipe Sizes
Pulse Output Available
Rugged Construction
Accurate and Economical

Turbinen- und Flügelrad-Durchflussmesser - Verwandte Produkte anzeigen

Beschreibung

The FTB-630 Series turbine meters are dry-register mechanical totalizers that offer accurate, economical reading of high flows with low pressure loss. The horizontal-axis turbine drives a vertical shaft, which is magnetically coupled to the sealed register. In addition to mechanical totalizing, registers can be equipped with magnetic pulse reed sensors well suited for remote totalizing, pacing of electronic metering pumps, and water treatment applications. Bodies are manufactured of tough cast iron and epoxy-coated for protection. Tungsten steel shafts and jewel bearings further enhance the durability of these meters. Simple removal of the top flange brings out all parts for inspection, repair, or replacement. The meter has a tamper-evident seal to call attention to unauthorized access.

SPECIFICATIONS
Meter Body Materials: Cast iron, epoxy coating
Register Plate: ABS plastic
Drive Magnet: Alnico
Turbine: Plastic
Turbine Shafts: Tungsten steel
Bearings: Jewel
Flanges: 150 lb. ANSI drilling
Maximum Pressure: 200 psi (14 bar)
Maximum Temperature: 40°C (105°F)
Accuracy*:
Above Transition: ±2% of reading
Below Transition: ±5% of reading
Reed Switch: 100 mA @ 24 Vac/dc
Cable Length: 15 m (4.5')
* See Flow Ranges chart on previous page.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

FTB-632

€1.188,59

Lieferzeit: 4 Wochen

Water totalizer 2" 150 lb flange, no output

FTB-633

€1.990,00

Lieferzeit: 1 Woche

Water totalizer 3" 150 lb flange, no output

FTB-634

€2.398,50

Lieferzeit: 4 Wochen

Water totalizer 4" 150 lb flange, no output

FTB-636

€4.332,00

Lieferzeit: 4 Wochen

Water totalizer 6" 150 lb flange, no output

FTB-638

€5.851,00

Lieferzeit: 4 Wochen

Water totalizer 8" 150 lb flange, no output

FTB-632P

€1.467,00

Lieferzeit: 4 Wochen

Water totalizer 2" 150 lb flange 10 gallons/pulse output

FTB-633P

€2.017,00

Lieferzeit: 4 Wochen

Water totalizer 3" 150 lb flange 100 gallons/pulse output

FTB-634P

€2.595,00

Lieferzeit: 4 Wochen

Water totalizer 4" 150 lb flange 100 gallons/pulse output

FTB-636P

€4.463,00

Lieferzeit: 4 Wochen

Water totalizer 6" 150 lb flange 1000 gallons/pulse output

FTB-638P

€5.992,00

Lieferzeit: 4 Wochen

Water totalizer 8" 150 lb flange 10K gallons/pulse output

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator’s manual.
