Turbine Flow Sensors

FTB370 Series

Brass Water Turbines

^€570,72 FTB371-G

ZUR BESTELLTABELLE

Compact Design
Wide Turn Down Ratio
High Quality Sapphire Bearing
Fixed Pulse Rate
IP54
Can be Mounted in Any Position

Turbinen- und Flügelrad-Durchflussmesser - Verwandte Produkte anzeigen

Beschreibung

More information about how a Flow meter works in this link.

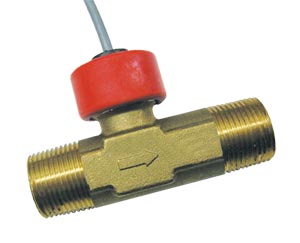

The FTB370 Series flow turbines are designed for flow rate measurement of water and many water based liquids. They are compact in design and have a wide measuring range. The liquid flowing into the FTB370 series is divided by guiding blades into four split streams. The uniform loading of the bearings from four sides causes the forces to cancel themselves out and wear gets reduced to a minimum. The extremely hard bearing materials also ensure an extraordinary life expectancy.

**Specifications**
Model Number	FTB371-G	FTB372-R	FTB373-R
Range	2 to 40 l/min. (Continuous 20 l/min max.)	4 to 160 l/min (Continuous 80 l/min max.)	0.4 to 25 m³/h (6.7 to 417 l/min)
Accuracy	±1 % of range	±5 % of reading	±7 % of reading <3 m³/h & ±5 % of reading >3 m³/h
Repeatability	±0.2 %	±0.5 %	±0.5 %
Signal Output	from 0.3 l/min	from 1 l/min	from 0.1 m³/h
Max. Fluid Temperature	85 °C
Max. Pressure	10 bar
Diameter	DN15	DN 25	DN 40
Length	80 mm	178 mm	270 mm
Process Connection	G¾A Male	R1 (1" BSPT) Male	R1½ (1½" BSPT) Male
Pulse Rate (K Factor)	855 pulses/litre	65 pulses/litre	26.6 pulses/litre
Output Resolution	1.2 ml/pulse	15 ml/pulse	37.6 ml/pulse
Signal Shape	Square Wave. NPN Open Collector
Signal Current	10 mA max.	19 mA max.	19 mA max.
Electrical Connection	1.5 m Screened PVC Cable (70 °C max.)	2 m Screened PVC Cable (70 °C max.)	2 m Screened PVC Cable (70 °C max.)
Power Supply	4.5 to 24 Vdc	10 to 30 Vdc	10 to 30 Vdc
Protection Class	IP 54
Max. Particle Size	0.5 mm	0.63 mm	0.63 mm
Wetted Parts
Body	Brass: CuZn36Pb2 As CW602N
Sensor Housing	PPO Noryl GFN3	PPO Noryl GFN 1630 V	PPO Noryl GFN 1630 V / POM Celcom
Turbine System	PEI ULTEM	PPO Noryl GFN 2 V/PPO Noryl GFN 3 V	PPO Noryl GFN 2 V/PPO Noryl GFN 3 V
O-Ring Seal	NBR	EPDM	EPDM
Shaft/Bearing	Arcap AP1D shaft with hard metal pins in Sapphire Bearings	Stainless Steel Shaft with Sapphire Bearing	Stainless Steel Shaft with Sapphire Bearing
Rotor Assembly	Hard Ferrite Magnet

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

FTB371-G

€570,72

Lieferzeit: 3 Wochen

G¾A brass turbine flow meter

FTB372-R

€817,58

Lieferzeit: 5 Wochen

R1 (1" BSPT) brass turbine flow meter

FTB373-R

Consult Sales

Lieferzeit:

R1½ (1½" BSPT) brass turbine flow meter

*Alle Preisangaben in Euro.
