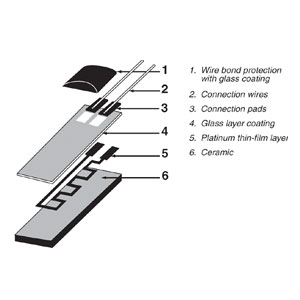

OMEGAFILM RTD Elements Flat Profile Thin Film Platinum

ZUR BESTELLTABELLE

Sold in Packs of 100
Flat, Small Profile
Specification DIN EN 60751 (According to IEC 751)
Temperature Range -70 to 500°C (-94 to 932°F)
Temperature Coefficient a = 0.00385
100, 500 and 1000 Ω Configurations
Class A, B and 1⁄3 B Tolerances
Long Term Stability Maximum Ro-Drift 0.04% After 1000 Hours at 500°C
Vibration Resistance at Least 40 g Acceleration at 10 to 2000 Hz
Shock Resistance at 100 g Acceleration with 8 ms Half Sine Wave
Insulation Resistance >10MΩ at 20°C: >1MΩ at 500°C
Self Heating 0.4 K/mW at 0°C
Response Time Water Current (v=0.4 m/s) t0.5 = 0.2 s; t0.9 = 0.4 s Air Stream (v = 1 m/s) t0.5 = 4.0 s; t0.9 = 12.0 s
Platinum Clad Nickel Wire Leads 10 L x 0.2 mm D (0.39 x 0.008")

Beschreibung

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

F2222-100-B-100

€418,08

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 100, Temp Tolerance; Class B (-70 to 500°C)

F2222-100-A-100

€503,25

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 100, Temp Tolerance; Class A (-30 to 350°C)

F2222-100-1/3B-100

€567,33

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 100, Temp Tolerance; Class 1/3B (0 to 100°C)

F2222-1000-B-100

€438,77

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 1000, Temp Tolerance; Class B (-70 to 500°C)

F2222-1000-A-100

€503,23

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 1000, Class A (-30 to 350°C)

F2222-1000-1/3B-100

€539,81

Lieferzeit: 4 Wochen

Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 1000, Class 1/3B (0 to 100°C)

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: Due to the self heating error by the measuring conditions, the measuring current should be limited to a maximum value. We recommend 100 Ω maximum 1 mA; 500 Ω 0.7 mA; 1000 Ω maximum 0.3 mA.
