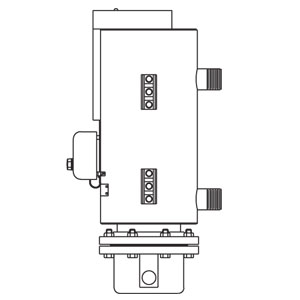

High Temperature Gas Circulation Heater for Applications to 1200°F

GCHIS, GCHISB and GCHISR Series

Gas Circulation Heater

ZUR BESTELLTABELLE

2 - 200 kW
240 or 480 Volts
Incoloy ® Elements, max sheath temperature of 871°C (1600°F)

Durchlauferhitzer - Verwandte Produkte anzeigen

Beschreibung

kW	Volts	Ckt & Phase	Dimensions (In.)			Model No.	Wt. (Lb.)
kW	Volts	Ckt & Phase	A	B	C	Model No.	Wt. (Lb.)
Series 03 — 3 inch, 150 lb 304 stainless steel vessel — 3 INCOLOY elements (15 W/In2) with side mounted thermostat (200 to 550°F) — 1" NPT pipe inlet and outlet¹
2	240	1-3	33 1/4	22 1/2	16 1/2	GCHISR-03-002P-E1/240*	62
2	480	1-3	33 1/4	22 1/2	16 1/2	GCHISR-03-002P-E1/480*	62
4	240	1-3	55 3/4	45	36	GCHISR-03-004P-E1/240*	94
4	480	1-3	55 3/4	45	36	GCHISR-03-004P-E1/480*	94
Series 06 — 5 inch, 150 lb 304 stainless steel vessel — 6 INCOLOY elements (15 W/In2) with side mounted thermostat (200 to 550°F) — 2" NPT pipe inlet and outlet¹
4	240	1-3	41 3/4	30	11 3/8	GCHISR-06-004P-E1/240*	135
4	480	1-3	41 3/4	30	11 3/8	GCHISR-06-004P-E1/480*	135
8	240	1-3	48 3/4	37	14 7/8	GCHISR-06-008P-E1/240*	164
8	480	1-3	48 3/4	37	14 7/8	GCHISR-06-008P-E1/480*	164
12	240	1-3	60 1/4	48 1/2	20 5/8	GCHISR-06-012P-E1/240*	195
12	480	1-3	60 1/4	48 1/2	20 5/8	GCHISR-06-012P-E1/480*	195
15	240	1-3	73 5/8	61 7/8	27 5/16	GCHISR-06-015P-E1/240*	215
15	480	1-3	73 5/8	61 7/8	27 5/16	GCHISR-06-015P-E1/480*	215
20	240	1-3	86 5/8	74 7/8	33 7/8	GCHISR-06-020P-E1/240*	253
20	480	1-3	86 5/8	74 7/8	33 7/8	GCHISR-06-020P-E1/480*	253
Series 06 — 5 inch, 150 lb 304 stainless steel vessel — 6 INCOLOY elements (23 W/In2) with side mounted thermostat (200 to 550°F) — 2" NPT pipe inlet and outlet¹
25	240	2-3	73 5/8	61 7/8	27 5/16	GCHIS-06-025P-E1/240*	195
25	480	1-3	73 5/8	61 7/8	27 5/16	GCHIS-06-025P-E1/480*	195
30	240	2-3	86 5/8	74 7/8	33 7/8	GCHIS-06-030P-E1/240*	240
30	480	1-3	86 5/8	74 7/8	33 7/8	GCHIS-06-030P-E1/480*	240
Series 18 — 8 inch, 150 lb 304 stainless steel vessel — 18 baffled INCOLOY elements1 (23 W/In2)
30	240	3-3	50 1/8	28 1/2	25	GCHISB-18-030P-E1/240*	340
30	480	3-3	50 1/8	28 1/2	25	GCHISB-18-030P-E1/480*	340
40	240	3-3	54 5/16	32 11/16	29 3/16	GCHISB-18-040P-E1/240*	410
40	480	3-3	54 5/16	32 11/16	29 3/16	GCHISB-18-040P-E1/480*	410
50	240	3-3	61 5/16	39 11/16	36 3/16	GCHISB-18-050P-E1/240*	480
50	480	3-3	61 5/16	39 11/16	36 3/16	GCHISB-18-050P-E1/480*	480
Series 27 — 10 inch, 150 lb stainless steel vessel — 27 INCOLOY elements1 (20 W/In2)
50	240	3-3	56 9/16	31	27 1/2	GCHIS-27-050P-E1/240*	340
50	480	3-3	56 9/16	31	27 1/2	GCHIS-27-050P-E1/480*	340
60	240	3-3	62 9/16	37	33 1/2	GCHIS-27-060P-E1/240*	370
60	480	3-3	62 9/16	37	33 1/2	GCHIS-27-060P-E1/480*	370
70	240	3-3	68 9/16	43	39 1/2	GCHIS-27-070P-E1/240*	400
70	480	3-3	68 9/16	43	39 1/2	GCHIS-27-070P-E1/480*	400
80	240	3-3	75 9/16	50	46 1/2	GCHIS-27-080P-E1/240*	430
80	480	3-3	75 9/16	50	46 1/2	GCHIS-27-080P-E1/480*	430
90	240	3-3	81 9/16	56	52 1/2	GCHIS-27-090P-E1/240*	543
90	480	3-3	81 9/16	56	52 1/2	GCHIS-27-090P-E1/480*	560

*To Order — Add phase suffix /1P, /2P or /3P to model number. (when specified)
1. Recommended temperature limits for all GCH heaters with stainless steel vessels and INCOLOY elements are 1600° F maximum for the sheath temperature and 1200° F maximum for the vessel temperature at 5 psi maximum pressure. Exceeding these recommendations will void the factory warranty. Outlet gas temperatures must be kept below both the maximum sheath and vessel temperatures or element and vessel damage may occur.
Other Note — Refer to the Controls section for side mounted controls or control panels.

kW	Volts	Ckt & Phase	Dimensions (In.)					Model No.	Wt. (Lb.)
kW	Volts	Ckt & Phase	A	B	C	D	E	Model No.	Wt. (Lb.)
Series 45 — 14 inch, 150 lb stainless steel vessel — 45 INCOLOY elements1 (15 W/In2)
90	480	3-3	76	57 3/16	66 11/16	15	11 1/2	GCHIS-45-090P-E1/90	925
125	480	3-3	91	72 3/16	81 11/16	15	111 1/2	GCHIS-45-125P-E1/125	1025
150	480	3-3	106	87 3/16	96 11/16	15	111 1/2	GCHIS-45-150P-E1/150	1125
175	480	3-3	121	102 3/16	111 11/16	15	111 1/2	GCHIS-45-175P-E1/175	1225
200	480	3-3	128 1/2	109 11/16	119 11/16	15	111 1/2	GCHIS-45-200P-E1/200	1325

1. Recommended temperature limits for all GCH heaters with stainless steel vessels and INCOLOY elements are 1600°F maximum for the sheath temperature and 1200°F maximum for the vessel temperature at 5 psi pressure maximum. Exceeding these recommendations will void the factory warranty. Outlet gas temperatures must be kept below both the maximum sheath and vessel temperature or element and vessel damage may occur.
Other Note — Refer to the Controls section for side mounted controls or control panels.<

Please review the tables and spec sheet to verify Valid Part Numbers
to ensure best results when using the "Part Number Builder" below

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

GCHISR-03-002P-E1/240

Consult Sales

Lieferzeit:

Stk

Series 03, 3 inch, 150 lb 304 stainless steel vessel, 240 V

GCHISR-06-008P-E1/480

Consult Sales

Lieferzeit:

Stk

Series 06, 5 inch, 150 lb 304 stainless steel vessel, 480 V

GCHISB-18-030P-E1/240

Consult Sales

Lieferzeit:

Stk

Series 18, 8 inch, 150 lb 304 stainless steel vessel, 240 V

GCHIS-27-090P-E1/480

Consult Sales

Lieferzeit:

Stk

Series 27, 10 inch, 150 lb stainless steel vessel, 480 V

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

(1) (2) (3) (4)

- - P-E1/

Rücksetzen

Optionsbeschreibungen:

(1) Series Wählen Sie:
GCHIS für GCHIS Series
GCHISB für GCHISB Series
GCHISR für GCHISR Series

(2) Elements Wählen Sie:
03 für 3 INCOLOY elements
06 für 6 INCOLOY elements
18 für 18 baffled INCOLOY elements
27 für 27 INCOLOY elements
45 für 45 INCOLOY elements

(3) Wattage Wählen Sie:
002 für 2 kW
004 für 4 kW
008 für 8 kW
012 für 12 kW
015 für 15 kW
020 für 20 kW
025 für 25 kW
030 für 30 kW
040 für 40 kW
050 für 50 kW
060 für 60 kW
070 für 70 kW
080 für 80 kW
090 für 90 kW
125 für 125 kW
150 für 150 kW
175 für 175 kW
200 für 200 kW

(4) Voltage Wählen Sie:
240 für 240 V
480 für 480 V
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
