Video Borescope System - Discontinued

HHB1600

ZUR BESTELLTABELLE

5.5 mm (0.22") External Diameter Tip Easily Fits Through the Spark Plug Hole of Any Engine
SD Card, Real Time Data Logger
4 Super-Strength White Light LED’s
Water, Oil and Scratch Resistant
Optimized Illumination
Rapid Assembly of Lens Module
Illumination Intensity Easily Adjusts to Environment
89 mm (3.5") Extra-Wide TFT Monitor
Hard Protective Case
2 Way Articulating Probe - Soft Metal (Optional)
NEW!! Pipe and Duct Reel Set (P16PIP- click on Manuals for specifications)

Beschreibung

The HHB1600 series has been discontinued. Please see the HHB1900 as a possible alternative or contact our Temperature Engineering department.

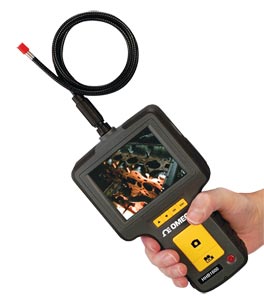

The HHB1600 borescope is a portable, hand-held, complete borescope system with monitor, camera and video. Compact, palm sized unit includes LED light source, TFT (thin film transistor) display. Camera, display that takes still photos and dynamic video in real time. Internal SD memory allows whole videos to be saved and outputted later. TV monitor and computer USB output and data logging function. Unit has multiple viewing tips and extra wide view angle capability. Multiple video formats compatible with most software including Windows® Media Player. Rechargeable batteries can record for 4 hours continuously.

SPECIFICATIONS
Working Temperature: -20 to 60°C (-4 to 140°F)
Probe Working Temperature: 0 to 55°C (32 to 131°F)
Total Storage Temperature: -20 to 60°C (-4 to 140°F)
While Battery in Charge Temp: 0 to 40°C (32 to 104°F)
Dimensions: 215 L x 120 W x 36 mm H (8.5 x 4.7 x 1.4")
Probe: 1 m (3.3')
Weight: 380 g (13.4 oz)
Resolution (Dynamic/Static): 320 H x 240V/640 H x 480V @ 30 M
Tip Insertion Tube Diameter: 5.5 mm (0.22")
Frame Rate: 30 fps
S/N Ratio: 42 db
Exposure: Automatic
White Balance: Fixed
Sensor Field of View:
    Horizontal Field Angle: 46°
    Vertical Field Angle: 34°
    Diagonal Field Angle: 56°
Depth of Field (DOF): 1 to 6 cm (0.4 to 2.4")
Light Source: 4 white LED

System Specification
Power: 5 Vdc
Display: 89 mm (3.5") TFT LCD monitor 320 x 240 pixels
Interface: Mini USB 1.1/AV out/AV in
Battery: Rechargeable li-polymer (3.7V) (included)
Video Out Format: NTSC and PAL
Recording Medium: 2G SD card (included)
Compression Format: MPEG4
Still Image Storage Format: JPEG (640 x 480)
Video Recording Format: ASF (320 x 240)
Language: English, Japanese, German, Spanish, French, Italian, traditional and simplified Chinese

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

HHB1600

Consult Sales

Lieferzeit:

Borescope

Accessories

P16PIP

€3.505,00

Lieferzeit: 15 Wochen

Pipe and Duct Reel Set

P1618-1SR

Consult Sales

Lieferzeit:

Replacement probe 1 m (3.3') obedient metal

P1618-2SR

€1.738,00

Lieferzeit: 6 Wochen

Probe 2 m (6.6') obedient metal

P16183SR-M

€915,16

Lieferzeit: 8 Wochen

Probe 3 m (9.8') obedient metal

P1618-1SM

€1.595,00

Lieferzeit: 6 Wochen

Probe 1 m (3.3') soft metal

P1618-3SM

€2.026,00

Lieferzeit: 6 Wochen

Probe 3 m (9.8') soft metal

P1618-5SM

€1.529,00

Lieferzeit: 15 Wochen

Probe 5 m (16.4') soft metal

P1618-10SM

€1.529,00

Lieferzeit: 15 Wochen

Probe 10 m (32.8') soft metal

P1618-30SM

€3.728,00

Lieferzeit: 6 Wochen

Probe 30 m (98.4') soft metal

P16ART-1SM

€2.431,00

Lieferzeit: 15 Wochen

2 Way Articulating probe 1 m (3.3') soft metal

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with USB cable, video cable, power supply, 2G SD card, 1 m (3.3') probe, 3.7V rechargeable battery, 3 mirror attachments, cleaning kit, hard carrying case and operator’s manual.

Technical Note On Obedient and Soft Metal Probes:
Obedient and flexible probe: you can bend it and it stays in shape.
Soft metal probe: it’s flexible, but it doesn’t retain the shape.
