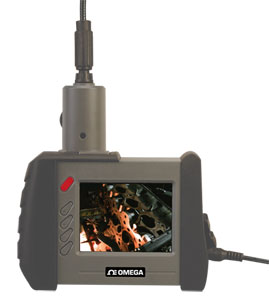

Wireless Borescope - Discontinued

HHB1800

Completely Portable
SD Card, Real Time Data Logger
Records Still or MPEG 4 Video
Strong Metal Lens Sleeve
Direct or Wireless Operation Modes
2 Way Articulating Probe (Optional)
NEW!! Pipe and Duct Reel Set (P16PIP- click on Manuals for specifications)

Beschreibung

The HHB1800 series has been discontinued. Please see the HHB1900 as a possible alternative or contact our Temperature Engineering department.

The HHB1800 features a wireless probe which one can operate the instrument anywhere without the cable. An image can be sent to a larger screen up to 50 m (160') away. The HHB1800 has three different application modes (on console, on large screen, and projected) allow wide application and there is no need for an external light, power or screen. With the palm-sized console you can inspect many applications. The wireless HHB1800 includes hands-free, one-handed and two-handed modes. You can choose the appropriate mode to meet your needs in different working applications. You can hold the wireless probe handle (console) at a perfect height even when checking the undercarriage of an air conditioner. In some special working environments you may need a free hand to remove an obstacle during inspection. Simply place the separable console on a stable platform and manipulate the probe with a single hand. The console (probe handle) and probe can also be set up for hands-free operation.

SPECIFICATIONS
Camera System and Insert Tube Diameter of Insert Tube: 5.5 mm (0.2")
Resolution: 325 (H), 250 (V)
Housing: Steel
Light Source: White LED
Length: 1 m (39.4")
Field of View:
    Horizontal Field Angle: 46°
    Vertical Field Angle: 34°
    Diagonal Field Angle: 56°
Depth of Field (DOF): 1 to 6 cm (0.4 to 2.4")
Water Resistance: Insert tube
Working Temperature: 0 to 55°C (32 to 131°F)
Console (Wireless Probe Handle) Dimensions: 139 H x 35 W x 32 mm D (5.5 x 1.4 x 1.3")
Weight: 220 g(7.8 oz)
Wireless Transceiver Frequency: 2.4 GHz • 4 channels (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz)
Battery: Rechargeable Li-Polymer battery 3.7V (included)
Brightness Control: Variable
Audio: Integrated microphone

SYSTEM
System Dimensions: 146.9 H x 105.4 W x 71 mm D (5.8 x 4.1 x 2.8")
System Weight: 0.335 kg (11.8 oz)
Power: Rechargeable Li-Polymer battery 3.7V (included)
Power Supply: 100 to 240 Vac, 50 to 60 Hz
Power Consumption: DC5.5 I.8A
Display: 3.5 TFT LCD QVGA
Recording Medium: 1 GB SD CARD (up to 2G)
Video Out Format: NTSC and PAL
Interface: AV Out
Wireless Receiver Frequency: 2.4 GHz • 4 channels (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz)
Compression Format: Compliant with MPEG 4
Still Image Storage Format: JPEG (640 x 480)
Frame Rate: ~30 fps
Exposure: Automatic
White Balance: Fixed
S/N Ratio: 42 dB or more
Language: English, German, French, and Portuguese Operating
Environment: -20 to 60°C (-4 to 140°F) Storage
Environment: -20 to 60°C (-4 to 140°F) Recharge
Environment: 0 to 40°C (32 to 104°F)

Technical Note On Obedient and Soft Metal Probes:
Obedient and flexible probe: you can bend it and it stays in shape.
Soft metal probe: it’s flexible, but it doesn’t retain the shape.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

HHB1800

Consult Sales

Lieferzeit:

Wireless borescope

Accessories

P16PIP

€3.505,00

Lieferzeit: 15 Wochen

Pipe and Duct Reel Set

P1618-1SR

Consult Sales

Lieferzeit:

Replacement Probe 1 m (3.3') Obedient Metal

P1618-2SR

€1.738,00

Lieferzeit: 6 Wochen

Probe 2 m (6.6') Obedient Metal

P1618-3SR

Consult Sales

Lieferzeit:

Probe 3 m (9.8') Obedient Metal

P1618-1SM

€1.595,00

Lieferzeit: 6 Wochen

Probe 1 m (3.3') Soft Metal

P1618-3SM

€2.026,00

Lieferzeit: 6 Wochen

Probe 3 m (9.8') Soft Metal

P1618-5SM

€1.529,00

Lieferzeit: 15 Wochen

Probe 5 m (16.4') Soft Metal

P1618-10SM

€1.529,00

Lieferzeit: 15 Wochen

Probe 10 m (32.8') Soft Metal

P1618-30SM

€3.728,00

Lieferzeit: 6 Wochen

Probe 30 m (98.4') Soft Metal

P18ART-1SM

Consult Sales

Lieferzeit:

2 Way Articulating Probe, 1 m (3.3') Soft Metal

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with heavy-duty carrying case, screwdriver, 1 GB SD card, 3.7V battery, 1 m (3.3') probe, AC power adaptor, cleaning kit, video cables, and operator's manual.
