Miniature I/P Electronic Air Pressure Control

IP610 Series

Miniature I/P Electronic Air Pressure Control | IP610 Series

Miniature I/P Electronic Air Pressure Control

375,00 IP610-X30

CE RoHS
  • Compact Size for High Density Mounting
  • NEMA-4X (IP-65) Enclosure
  • 4 to 20 mA Loop Powered

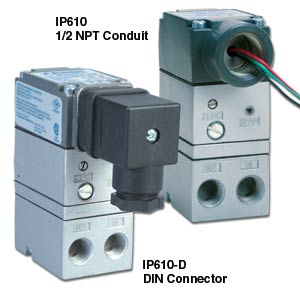

  • Conduit or DIN Connector Wiring
  • Wall, Panel or Pipe Mounting Standard
  • Optional DIN Rail Mounting Kit
  • Input/Output Ports on Front and Back
  • External Zero and Span Adjustments
Ventile, Regler und I/P-Konverter - Verwandte Produkte anzeigen

Beschreibung

The IP610 is an electronic pressure regulator that converts a variable 4 to 20 mA signal to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained. This economical instrument provides precision air pressure regulation to actuators, valves, positioners and other final control elements. An integral volume booster provides high flow capacity, increasing control speed in critical applications. Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, an optional DIN rail mounting kit is available.

Model No. Range
(psi)
Accuracy Impedance Air
Consumption
Pressure
Supply
(psi)
Flow
Capacity
IP610-X15 3 to 15 ±1.0% span 180 Ω 1.8 scfh @
mid-range
20 to 100 4.5 scfm @ 25 psig
12 scfm @ 100 psig
IP610-X27 3 to 27 ±1.0% span 240 Ω 1.8 scfh @
mid-range
32 to 100 4.5 scfm @ 25 psig
12 scfm @ 100 psig
IP610-X30 6 to 30 ±1.0% span 240 Ω 1.8 scfh @
mid-range
35 to 100 4.5 scfm @ 25 psig
12 scfm @ 100 psig
IP610-X60 2 to 60 ±2.5% span 245 Ω 1.8 scfh @
mid-range
65 to 150 12 scfm @ 100 psig
IP610-X120 3 to 120 ±2.5% span 280 Ω 1.8 scfh @
mid-range
125 to 150 20 scfm @ 150 psig
IP610-030 0 to 30 ±2.5% span 290 Ω 6.0 scfh @
mid-range
35 to 100 12 scfm @ 25 psig
20 scfm @ 150 psig
IP610-060 0 to 60 ±2.5% span 300 Ω 6.0 scfh @
mid-range
65 to 150 12 scfm @ 25 psig
20 scfm @ 150 psig
IP610-120 0 to 120 ±2.5% span 315 Ω 6.0 scfh @
mid-range
125 to 150 12 scfm @ 25 psig
20 scfm @ 150 psig

SPECIFICATIONS
Agency Approvals: FM and CSA Intrinsically Safe
  IP610: Class I,II,III, Div. 1, Groups C, D, E, F & G
  IP610-D: Class I, Div. 1, Groups C & D
  (output pressure, does not affect rating)
Input Signal: 4 to 20 mA loop powered
Accuracy: Includes linearity, hysteresis and repeatability
Linearity: ±0.5% of span (±1.5% for zero based units)
Hysteresis & Repeatability: ±0.5% of span (±1% for zero based units)
Supply Pressure Sensitivity: 0.1% of span per psi (±0.02% for zero based units)
RFI/EMI Effect: 0.5% of span change in output pressure per En 61000-4-3:1998,
Amendment 1, Performance Criterion A
Temperature Limits: -30 to 65°C (-20 to 150°F)
Max Flow Capacity: 12 SCFM for all except 120 psi 20 SCFM
Media: Clean, dry, oil-free, instrument air, filtered to 40 micron
Pressure Ports: ¼ NPT female
Electrical Connections: ½ NPT female conduit or DIN 43560 connector
Mounting: Direct wall, panel, 1½" pipe, or optional DIN rail
Materials:
  Housing: Chromate treated aluminum with epoxy paint, NEMA-4X (IP65) rated
  Elastomers: Buna-N
  Trim: Stainless Steel and zinc plated brass
Dimensions:(offset units) 93.7 mm H x 38.1 mm W x 74.7 mm D (3.69" x 1.50" x 2.94")
(zero based units) 130.0 mm H x 38.1 mm W x 74.7 mm D (5.12" x 1.50" x 2.94")
Weight: 590 g (1.3 lb) or 770 g (1.7 lb) for zero based units
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
RoHS
Beschreibung
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-X15
IP610-X15
375,00
Lieferzeit: 2 Wochen
RoHS compliant
3 to 15 psi I/P converter with conduit termination
Quick Ship

IP610-X27
375,00
Lieferzeit: 7 Wochen
RoHS compliant
3 to 27 psi I/P converter with conduit termination
Quick Ship

IP610-X30
375,00
Lieferzeit: 2 Wochen
RoHS compliant
6 to 30 psi I/P converter with conduit termination
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-X60
IP610-X60
375,00
Lieferzeit: 2 Wochen
RoHS compliant
2 to 60 psi I/P converter with conduit termination
Quick Ship

IP610-X120
375,00
Lieferzeit: 7 Wochen
RoHS compliant
3 to 120 psi I/P converter with conduit termination
Quick Ship

IP610-030
415,00
Lieferzeit: 2 Wochen
RoHS compliant
0 to 30 psi I/P converter with conduit termination
Quick Ship

IP610-060
415,00
Lieferzeit: 2 Wochen
RoHS compliant
0 to 60 psi I/P converter with conduit termination
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-0120
IP610-0120
415,00
Lieferzeit: 2 Wochen
RoHS compliant
0 to 120 psi I/P converter with conduit termination
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-X15-D
IP610-X15-D
385,00
Lieferzeit: 2 Wochen
RoHS compliant
3 to 15 psi I/P converter with DIN connector
Quick Ship

IP610-X27-D
385,00
Lieferzeit: 7 Wochen
RoHS compliant
3 to 27 psi I/P converter with DIN connector
Quick Ship

IP610-X30-D
385,00
Lieferzeit: 7 Wochen
RoHS compliant
6 to 30 psi I/P converter with DIN connector
Quick Ship

IP610-X60-D
385,00
Lieferzeit: 7 Wochen
RoHS compliant
2 to 60 psi I/P converter with DIN connector
Quick Ship

IP610-X120-D
385,00
Lieferzeit: 7 Wochen
RoHS compliant
3 to 120 psi I/P converter with DIN connector
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-030-D
IP610-030-D
430,00
Lieferzeit: 2 Wochen
RoHS compliant
0 to 30 psi I/P converter with DIN connector
Quick Ship

IP610-060-D
430,00
Lieferzeit: 7 Wochen
RoHS compliant
0 to 60 psi I/P converter with DIN connector
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-0120-D
IP610-0120-D
430,00
Lieferzeit: 3 Wochen
RoHS compliant
0 to 120 psi I/P converter with DIN connector
ACCESSORIES
Quick Ship
Click to expand/minimize a list of what others bought with theIP610-DM
IP610-DM
€10,70
Lieferzeit: 2 Wochen
RoHS compliant
DIN rail mounting adapter
*Alle Preisangaben in Euro.
Anmerkung: All IP610's come with mounting bracket and complete operators manual.
