Subminiature and Miniature Load Cells in Economical 3-Packs - Discontinued

LCKD and LCGD

Subminiature and Miniature Load Cells in Economical 3-Packs

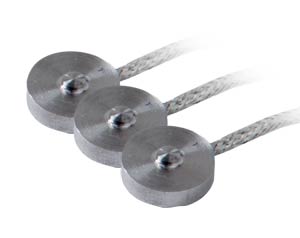

Convenient 3-Packs of Compression Load Cells
Subminiature and Miniature Sizes
Capacities from 2.2 to 50,000 lbs
All Stainless Steel Construction
LCKD Series:
1 kg to 1000 lb Sizes
From 0.38 to 0.75" Sizes
LCGD Series:
25 to 50,000 lb Sizes
From 1 to 3" Sizes

Beschreibung

The LCGD-PK series has been discontinued. Please see the LCGD as possible alternatives or contact our {your dept.} Engineering department.

Small in size but not in performance, OMEGA’s LCKD Series subminiature compression load cells are designed to measure load ranges from 1 kg to 1000 lb. Rugged all stainless steel construction and high performance strain gages assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board which is included in the load cell’s cable. These units are designed to be mounted on a smooth, flat surface.

The LCGD Series miniature low profile load cells are compression load cells with excellent long term stability. An all stainless steel construction assures reliability in severe industrial environments. These units are designed to operate by mounting on a flat surface, and they have a load button machined as an integral part of the basic load cell.
