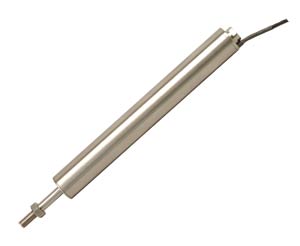

LVDT High-Accuracy Displacement Transducer DC Voltage Output

LD620 Series

High-Accuracy Displacement Transducer

^€699,59 LD620-2.5

ZUR BESTELLTABELLE

Displacement Transducer with better Than 0.2% Linearity
5 to 300 mm Total Travel Lengths Available
Rugged 19 mm Dia. Stainless Steel Body
Rigid Stainless Steel Carriers
IP67 Environmental Rating
Guided Core with Removable Spring for Easy Installation
Large Bore to Core Clearance
Applications:
Proprotional Actuators
Robotic Automation
Linear Servo Actuator
Industrial Automation Controls
Motion Control

Wegaufnehmer und Näherungsgeber - Verwandte Produkte anzeigen

Beschreibung

The displacement transducer of the LD620 series with DC output have improved IP67- rated sealing, coupled with new polymer guides with rigid carriers. These transducers are accurate and reliable, especially in wet and corrosive conditions. Output options are either ±5 Vdc (LD620) or 0-10 Vdc (LD621). An unusually large bore-to-core clearance is maintained throughout the range. This makes installation easier and helps prevent misalignment on automation actuators and other industrial automation controls.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc @ 25 mA maximum
Output Ripple: 0.02% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C (-4 to 185°F)
Operating Temp: 0 to 65°C (32 to 149°F)
Sealing: IP67
Vibration (Sinusoidal Frequency):
    10 to 50 Hz: 1 to 10 g rms linear Amplitude
    50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
   Drop Testing: 1 m (3') onto hard surface
   Topple Testing: 10 times each end onto hard surface
Case Material: 300 SS
Cable: PFA, 2 m (6') long
Core Material: Nickel-iron

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

±5 Vdc displacement Transducer

LD620-2.5

€699,59

Lieferzeit: ab Lager

±2.5 mm LVDT with ±5 Vdc output

LD620-5

€813,96

Lieferzeit: 11 Wochen

±5 mm LVDT with ±5 Vdc output

LD620-7.5

€757,41

Lieferzeit: 11 Wochen

±7.5 mm LVDT with ±5 Vdc output

LD620-10

€797,88

Lieferzeit: 11 Wochen

±10 mm LVDT with ±5 Vdc output

LD620-15

€838,36

Lieferzeit: 1 Woche

±15 mm LVDT with ±5 Vdc output

LD620-25

€883,31

Lieferzeit: 1 Woche

±25 mm LVDT with ±5 Vdc output

LD620-50

€917,74

Lieferzeit: ab Lager

±50 mm LVDT with ±5 Vdc output

LD620-75

€1.023,61

Lieferzeit: 11 Wochen

±75 mm LVDT with ±5 Vdc output

LD620-100

€1.268,12

Lieferzeit: 11 Wochen

±100 mm LVDT with ±5 Vdc output

LD620-150

€1.289,47

Lieferzeit: 1 Woche

±150 mm LVDT with ±5 Vdc output

0 to 10 Vdc Transducers

LD621-5

€919,28

Lieferzeit: 7 Wochen

0-5 mm LVDT with 0-10 Vdc output

LD621-10

€1.066,00

Lieferzeit: 11 Wochen

0-10 mm LVDT with 0-10 Vdc output

LD621-15

€1.011,98

Lieferzeit: 11 Wochen

0-15 mm LVDT with 0-10 Vdc output

LD621-20

€1.066,00

Lieferzeit: 11 Wochen

0-20 mm LVDT with 0-10 Vdc output

LD621-30

€1.011,98

Lieferzeit: 1 Woche

0-30 mm LVDT with 0-10 Vdc output

LD621-50

€1.127,43

Lieferzeit: 1 Woche

0-50 mm LVDT with 0-10 Vdc output

LD621-100

€1.268,12

Lieferzeit: 11 Wochen

0-100 mm LVDT with 0-10 Vdc output

LD621-150

€1.371,93

Lieferzeit: 4 Wochen

0-150 mm LVDT with 0-10 Vdc output

LD621-200

€1.555,40

Lieferzeit: 11 Wochen

0-200 mm LVDT with 0-10 Vdc output

LD621-300

€1.791,00

Lieferzeit: 11 Wochen

0-300 mm LVDT with 0-10 Vdc output

Accessories

LD-TIP

€57,03

Lieferzeit: 4 Wochen

Tip Adaptor/Ball Tip

LD-UJOINT-KIT

€242,73

Lieferzeit: 11 Wochen

U-Joint retro fit kit

*Alle Preisangaben in Euro.
Ordering Example: (1) LD620-2.5 DC displacement sensor with range of ±2.5 mm (±0.1) with output of ±5 Vdc, €699,59
