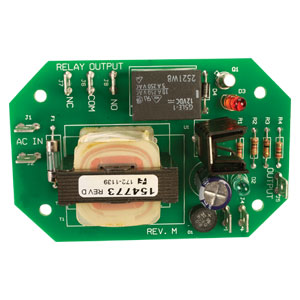

LVE-950-R Series

Converts TTL Output Signal to an SPDT 5 Amp Relay Output
Operates with 12 Vdc Switches
Available as Open Board or Mounted in NEMA 4X (IP65) Junction Box

Beschreibung

Omega’s LVE-950-R controllers convert standard 110 Vac line current to the 12 Vdc required for sensor excitation/operation, and provide an SPDT, 5 Amp relay output for direct control of moderate loads. Two models are available: an open circuit board (LVE-950-R) for incorporation into custom enclosures, and the self-contained, NEMA 4X (LVE-950-R-NEMA4).

Specifications
Voltage Input: 115 Vac ±10%, 50/60 Hz
Maximum Current Draw: 70 mA @ 120 Vac
Relay Output: SPDT 5 Amps @ 115 Vac, 5 Amps @ 30 Vdc
Operating Temperature: -25 to 70°C (-13 to 158°F)
Electrical Connections: ¼" male spade terminals*
*Ten (10) ¼" female spade connectors shipped loose with each unit.
