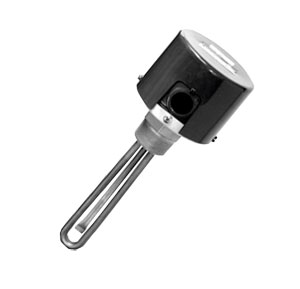

Clean Water Immersion Heater 1¼" NPT Fitting

MT-1 Series

Clean Water Immersion Heaters

^€350,49 MT-112A/240V

ZUR BESTELLTABELLE

1¼" NPT Brass Screw Plug
120 V and 240V, 1 Phase
General Purpose Models NEMA-1 Rated and UL Listed
Copper Sheath, Ideal for Clean Water Applications

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

The MT-1 series immersion heater is ideally suited for clean water requirements. Models are available with a general purpose terminal enclosure1 or a rugged moisture resistant explosion resistant terminal enclosure.

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See Section P for our complete selection of process controllers.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.

MT-1 Series

E1 General Purpose Encl.¹ Model No.	E2 Explos. Res./ Moist Res Encl.² Model No.	kW	Phase	W/in2	No. Elem.	Dim. B in (cm)
MT-160A/*	MT-160E2/*	0.6	1	53	1	6 1/8 (16)
MT-175A/*	MT-175E2/*	0.75	1	65	1	6 1/8 (16)
MT-110A/*	MT-110E2/*	1	1	86	1	6 1/8 (16)
MT-110-3A/*	MT-110-3E2/*	1	1	43	2	6 1/8 (16)
MT-112A/*	MT-112E2/*	1.2	1	53	2	6 1/8 (16)
MT-115A/*	MT-115E2/*	1.5	1	65	2	6 1/8 (16)
MT-120A/*	MT-120E2/*	2	1	86	2	6 1/8 (16)

/* Designate voltage, insert 120 for 120 VAC or 240 for 240 VAC. Higher wattages available - contact OMEGALUX.
1. Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified.
2. Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

MT-112A/240V

€350,49

Lieferzeit: 6 Wochen

1.2 kW heater powered by 240 VAC and NEMA-1 general purpose enclosure

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

		(1)	(2)		(3)
MT-	1			/

Optionsbeschreibungen:

(1) kW Wählen Sie:
60 für 0.6 kW
75 für 0.75 kW
10 für 1 kW
10-3 für 1 kW (MT-110-3A & MT-110-3E2 only)
12 für 1.2 kW
15 für 1.5 kW
20 für 2 kW

(2) Enclosure Wählen Sie:
A für General Purpose Enclosure
E2 für E2 Moisture Tight Explosion Resistant Enclosure

(3) Voltage Wählen Sie:
120V für 120 Vac
240V für 240 Vac

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
