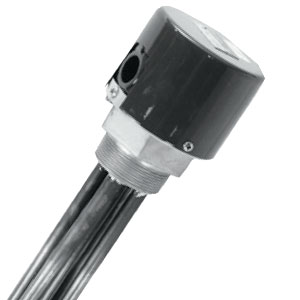

UL Listed and Nema 1 Rated Clean Water Immersion 2" NPT

MT-2 Series

Water Heater

^€458,74 MT-215A/120V

ZUR BESTELLTABELLE

Rugged General Purpose Models-UL Listed and NEMA-1 Rated
Optional Moisture Tight/ Explosion Resistant Enclosure Available
Ideal for pH 6 to pH 8 Clean Liquids
1.5 and 15 kW
120, 208, 240, 280, and 480 Volts

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

The OMEGALUX™ MT-2 Series utilizes a copper sheath ideal for clean liquids within the pH6 to 8 pH range.

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See section P for our selection of process controllers.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.

kW	W/in2	No. Htg Elem.	Dim. B in (cm)	E-1 Gen. Purpose Enclosure¹ Model No.	Wt. Ib. (kg)	E2 Explos. Res/Moist. Tight Encl.² Model No.	Wt. Ib. (kg)
1.5	48	1	12 (30)	MT-215A/*	3 (1)	MT-215E2/*	6 (3)
2	48	1	18 (46)	MT-220A/*	3 (1)	MT-220E2/*	6 (3)
2.5	51	2	8 (20)	MT-220-3A/*	3 (1)	MT-220-3E2/*	6 (3)
3	48	2	9 1/2 (24)	MT-225A/*	3 (1)	MT-225E2/*	6 (3)
4	48	2	12 (30)	MT-230A/*	4 (2)	MT-230E2/*	7 (3)
5	48	2	18 (46)	MT-240A/*	4 (2)	MT-240E2/*	7 (3)
6	53	2	19 13/16 (49)	MT-250A/*	5 (2)	MT-250E2/*	8 (4)
6	47	2	25 1/8(64)	MT-260A/240	5 (2)	MT-260E2/240	8 (4)
7	47	2	25 1/8 (64)	MT-260A/480	5 (2)	MT-260E2/480	8 (4)
7	49	2	28 (71)	MT-270A/240	6 (3)	MT-270E2/240	9 (5)
10	49	2	40 1/2 (103)	MT-270A/480	6 (3)	MT-270E2/480	9 (5)
12	46	2	48 (122)	MT-2100A/*	7 (3)	MT-2100E2/*	10 (5)
12	46	2	48 (122)	MT-2120A/**†	8 (4)	MT-2120E2/**†	11 (5)

/* Designates Voltage; insert 120 for 120 VAC, 208 for 208 VAC, 240 for 240 VAC, or 280 for 280 VAC
/**Designates Voltage; 208 for 208 VAC, 240 for 240 VAC,or 480 for 480 VAC
Those model numbers already containing 240 or 480 are only available in that voltage.
1 Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified except model with † (MT-2120A/ 208 & 240 Vac, exceeds 48 Amps.)
2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas, except model with † (MT-2120E2/ 208 & 240 Vac, exceeds 48 Amps).

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

MT-215A/120V

€458,74

Lieferzeit: 6 Wochen

Heater, 1.5 kW, 120 V

MT-250A/120V

€771,09

Lieferzeit: 6 Wochen

Heater, 6 kW, 120 V

MT-250A/240V

€771,09

Lieferzeit: 5 Wochen

Heater, 6 kW, 240 V

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)		(3)
MT-2			/

Optionsbeschreibungen:

(1) Code in Part Number Wählen Sie:
15 für code 15
20 für code 20
20-3 für code 20-3
25 für code 25
30 für code 30
40 für code 40
50 für code 50
60 für code 60
70 für code 70
100 für code 100
120 für code 120

(2) Code in Part Number Wählen Sie:
A für code A
E2 für code E2

(3) Voltage Wählen Sie:
120V für 120 V
208V für 208 V
240V für 240 V
480V für 480 V

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
