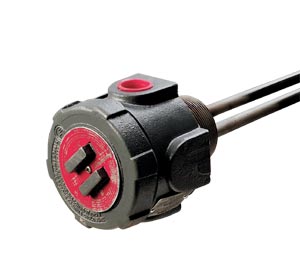

Pipe Insert Heaters

MTO-LT Series

Pipe Insert Heaters

^€2.365,00 MTO-241LT/240V

ZUR BESTELLTABELLE

For Insertion into 2" or Larger Pipe
Moisture/Explosion Resistant Enclosure*
14 to 13 kW
240 and 480 V, 1 Phase
2" NPT Steel Screw Plug
Lengths to 347"
Incoloy Sheath Heating Elements

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

APPLICATIONS
For use in those applications where process materials can be heated by inserting heater into a 2" or larger pipe. A pipe union will facilitate installation and eliminate the need for twisting the elements inside the pipe. Clearance room should be considered.

FEATURES
Choice of materials and surface loadings (W/in2) permit operating in the dead air space of pipes, tubes, or channels.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.

kW	Volts	Phase	W/in2	Dimensions—In. (cm)		Std. Pipe Thd.	Model No.	Weight lb (kg)
kW	Volts	Phase	W/in2	A	B	Std. Pipe Thd.	Model No.	Weight lb (kg)
4	240	1	11.7	127(322)	120(309)	2"(5)	MTO-241LT/240	12 (5)
4	480	1	11.7	127(322)	120(309)	2"(5)	MTO-241LT/480	12 (5)
5	240	1	11.1	163(160)	156(396)	2"(5)	MTO-251LT/240	16 (7)
5	480	1	11.1	163(160)	156(396)	2"(5)	MTO-251LT/480	16 (7)
7.5	240	1	12.7	211(536)	204(518)	2"(5)	MTO-275LT/240	22 (10)
7.5	480	1	12.7	211(536)	204(518)	2"(5)	MTO-275LT/480	22 (10)
11.5	480	1	12.9	319(810)	312(792)	2"(5)	MTO-212LT/240	36 (16)
13	480	1	12.5	367(932)	360(914)	2"(5)	MTO-213LT/480	42 (19)

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

MTO-241LT/240V

€2.365,00

Lieferzeit: 5 Wochen

Pipe insert heater, 1 phase, 4 kW, 240 V

MTO-241LT/480V1P

Consult Sales

Lieferzeit:

Pipe insert heater, 4 kW, 480 V

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: Higher kW available – consult OMEGALUX.®
Ordering Example: (1) MTO-241LT/240V 1 phase, 4 kW pipe insert heater, €2.365,00
