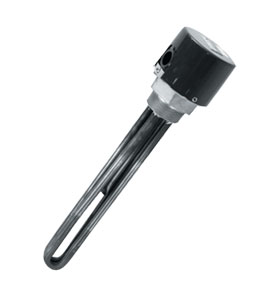

Medium Weight Oil Immersion Heater with 2 Element Design-2" NPT Steel Screw Plug

MTO-2 Series

Medium Weight Oil Screw Plug Immersion Heater

^€963,25 MTO-2020/240V

ZUR BESTELLTABELLE

Heavy Duty Steel Sheath for Use With Medium Weight Oils
Low Watt Density
2 to 6kW
240 and 480V, 1 Phase
General Purpose NEMA- Enclosure or Moisture Resistant/Explosion Resistant^2† Enclosure Available

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See Section P for our selection of process controllers.

SPECIFICATIONS
Wattage: 2 to 6 kW
Power: 240 and 480V, 1 phase
Watt Density: 15 W/in²
Sheath: 0.475" diameter Screw Plug: 2" NPT steel
Enclosure: E1 General Purpose, NEMA-1 rated¹, or E2 moisture resistant/explosion resistant enclosure.²

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

MTO-2020/240V

€963,25

Lieferzeit: 6 Wochen

240 Vac, 2 kW, 15 W/in2 with General Purpose Enclosure

MTO-2020E2/240V

Consult Sales

Lieferzeit:

240 Vac, 2 kW, 15 W/in2 with Moisture/Explos. Res. Enc.

MTO-2033/480V

€1.357,00

Lieferzeit: 6 Wochen

480 Vac, 3.33 kW, 15 W/in2 with General Purpose Enclosure

MTO-2033E2/480V

Consult Sales

Lieferzeit:

480 Vac, 3.33 kW, 15 W/in2 with Moisture/Explos. Res. Enc.

MTO-2060/480V

Consult Sales

Lieferzeit:

480 Vac, 6 kW, 15 W/in2 with General Purpose Enclosure

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: †Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electrical wiring according to National Electric Code. Abnormal application or use of heaters which in excessive temperatures can create hazardous conditions which can lead to fire. Not intended for use in hazardous areas.
¹ Heaters with general purpose enclosures are UL listed and CSA certified.
² Heaters with moisture-resistant/explosion-resistant enclosures are CSA NRTL/C certified.
* For dimensional information, please click on download under related links below.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

		(1)	(2)		(3)
MTO-	20			/

Optionsbeschreibungen:

(1) Watts and Watt density Wählen Sie:
20 für 2 kW
26 für 2.66 kW
33 für 3.33 kW
40 für 4 kW
50 für 5 kW
60 für 6 kW

(2) Enclosure Wählen Sie:
Keine (Feld leer lassen) für General Purpose Enclosure
E2 für Moisture Resistant/Explosion Resistant Enclosure

(3) Voltage Rating Wählen Sie:
240V für 240 Vac
208V für 208 Vac
480V für 480 Vac

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
