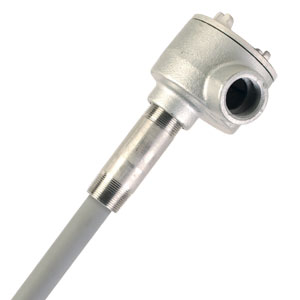

Molten Metal Ceramic Sheath Thermocouple

NEP-TX Series

^€2.199,00 NEP-TX-K-PTRS-1628-475

ZUR BESTELLTABELLE

Up to 1250°C (2282°F) Temperature Rating
For Use in Molten Non-Ferrous Metals
Connection Head with Terminal Block
Custom Probe Lengths Available
Available in Dual Element
High Temperature Thermal Shock Resistance
Corrosion Resistance
1¼ NPT Mounting Thread Standard

Thermoelemente - Verwandte Produkte anzeigen

Beschreibung

OMEGATITE™ 650 is the ceramic sheath which is an alloy of silicon nitride and aluminum oxide. This superior refractory material has the combined properties of silicon nitride (high strength, hardness, fracture toughness, and low thermal expansion) and aluminum oxide (corrosion resistance, chemically inert, high temperature capabilities, and oxidation resistance). Not recommended for caustic solutions and hydrofluoric acid.

Most refractory products can be used only in high temperature applications where one or two of the following properties are required: thermal shock resistant, mechanical strength, corrosion resistance, abrasion resistance or electrical insulation. OMEGATITE™ 650 combines all these properties in one refractory material. Preheating of the process is not necessary.

OMEGATITE™ 650 is uniquely qualified for non-ferrous molten metal applications and high wear or high impact environments up to 1250°C (2282°F).

OMEGATITE™ 650 is non-wetting for most non-ferrous metals. It is gas tight, chemically inert, resistant to corrosion and metal attack, and features high strength, hardness, and thermal shock resistance.

OMEGATITE™ 650 thermocouple sheaths are used extensively for continuous measurements in nonferrous metals. In molten aluminum, OMEGATITE™ 650 is thermally shock resistant, nonwetting, does not contaminate the melt, provides continuous, reliable temperature measurement, and is resistant to degradation even in aggressive aluminum lithium alloys.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

NEP-TX-K-PTRS-1628-475

€2.199,00

Lieferzeit: 4 Wochen

Type K Probe, 475mm (18.75in.) length, 28mm (1.10 in.) diameter

NEP-TX-N-PTRS-1628-475

Consult Sales

Lieferzeit:

Type N Probe, 475mm (18.75in.) length, 28mm (1.10 in.) diameter

*Alle Preisangaben in Euro.
Anmerkung: Ceramic tube packaged separately to avoid breakage during shipping. Shipped unassembled.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)		(2)	(3)
NEP-TX-		-PTRS-1628-

Optionsbeschreibungen:

(1) Select Calibration Wählen Sie:
K für Type K
N für Type N

(2) Select Probe Length (in increments of 150mm) Wählen Sie:
475 für 475mm (18.75in.) - Standard Length
CUSTOM für Select a custom length in increments of 150mm (6 in.)

(3) -DUAL Wählen Sie:
Keine (Feld leer lassen) für Standard Configuration
-DUAL für Dual Element

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
