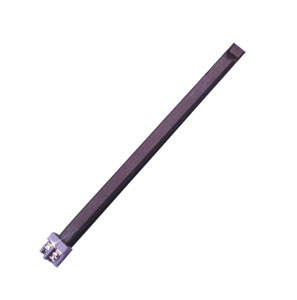

Seamless Incoloy Sheath Strip Heater

NS & NSL Series

Seamless Incoloy Sheath Strip Heater | NS & NSL Series

Seamless Incoloy Sheath Strip Heater

126,00 NS-1205/240V

RoHS
  • 3/4" (1.9 cm) Wide, High Temperature
  • Rugged, Reliable, Premium Quality
  • 500 to 3000 Watt
  • 2 Terminals at One End
  • Seamless Construction
Heizbänder - Verwandte Produkte anzeigen

Beschreibung

Click here if you want to know more about strip heaters.

Strip-heater advantages for highertemperature applications are offered by NS series. The heater design, materials and construction give long life for given power densities. The Incoloy sheath encloses nickelchromium resistance wire embedded in a densely compacted refractory material selected for dielectric insulation value and good heat conduction to the sheath. The small cross-section is often an advantage where space is a factor.

Clamp-on temperatures to 1200°F
Maximum work temperature depends on the watt density of the heater. Table 1 gives a few examples of work temperatures at different watt densities. Figure C-11 of the Heater Selection Nomographs page can be used to determine allowable watt densities for other specific temperatures.

Mounting
The flat top and bottom surfaces may be flush mounted or sandwiched between two heatconducting metal parts. Straight heaters can be mounted on surfaces curved to 6" (15 cm) inside radius or larger. The heater may be field bent to minimum 3 " (8 cm) inside radius. Standard strip heater clamps and clamping bands may be used for mounting.

In free or forced air, sheath temperature to 1500°F, maximum work temperature depends on the watt density of the heater. Table gives a few examples of work temperatures at different watt densities.

Max. Work Temperature °F
Application 30 W/in2 20 W/in2 10 W/in2
Clamp-on 300 750 950
Convection
Air Heating
950 1200 1350



Dimension-Inches (cm) NS Series. Incoloy Sheath NSL Series. 10" Wire Type Leads
A B Watts W/In2 Model
No.
Model
No.
Wt.
(lb) kg
121/2 (32) 87/8 (23) 500 32 NS-1205/** NSL-1205/** .63 (.28)
133/4 (35) 101/8 (26) 500 28 NS-1405/** NSL-1405/** .68 (.30)
157/16 (39) 1113/16 (30) 500 24 NS-1505/** NSL-1505/** .73 (.33)
1713/16 (45) 143/16 (36) 750 30 NS-1807/** NSL-1807/** .90 (.40)
181/2 (47) 147/8 (38) 1000 38 NS-1801/** NSL-1801/* .93 (.42)
193/8 (49) 153/4 (40) 1000 36 NS-1901/* NSL-1901/* 1.0 (.45)
217/16 (54) 1713/16 (45) 1100 35 NS-2001/** NSL-2001/* 1.1 (49)
233/4 (60) 201/8 (51) 1200 34 NS-2401/* NSL-2401/* 1.2 (.54)
251/4 (64) 215/8 (55) 1300 34 NS-2501/* NSL-2501/* 1.25 (.56)
2615/16 (68) 235/16 (59) 1400 34 NS-2601/** NSL-2601/* 1.30 (.59)
303/16 (77) 269/16 (67) 1500 32 NS-3015/* NSL-3015/* 1.52 (.68)
3315/16 (86) 305/16 (77) 1500 28 NS-3301/** NSL-3301/* 1.68 (.76)
363/8 (92) 323/4 (83) 1850 32 NS-3601/* NSL-3601/* 1.85 (.83)
39 (99) 353/8 (90) 2000 32 NS-3802/* NSL-3802/* 2.00 (.90)
403/4 (104) 371/8 (94) 2100 32 NS-4302/* NSL-4302/* 2.13 (.96)
513/8 (130) 473/4 (121) 2700 32 NS-4827/** NSL-4827/* 2.7 (.12)
54 (138) 503/8 (128) 3000 34 NS-5403/*** NSL-5403/*** 2.75 (.12)
/* Designate voltage, i.e.; insert 120V for 120 or 240V or 480V voltage required.
/** 120 or 240 Vac only.
/*** 240 or 480 Vac only.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
RoHS
Beschreibung
Quick Ship
NSL-2001/240V
198,00
Lieferzeit: 7 Wochen
RoHS compliant
NSL series heater, 240 Vac
Quick Ship
NSL-2401/120V
231,00
Lieferzeit: 7 Wochen
RoHS compliant
NSL series heater, 120Vac
Quick Ship
NSL-3015/120V
220,00
Lieferzeit: 7 Wochen
RoHS compliant
NSL series heater, 120Vac
Quick Ship
NSL-2001/120V
198,00
Lieferzeit: 7 Wochen
RoHS compliant
NSL series heater, 120Vac
Quick Ship
NSL-1807/240V
193,00
Lieferzeit: 5 Wochen
RoHS compliant
NSL series heater, 240Vac
Examples of common part numbers are shown below. Use the Part Number Builder below this table for your exact configuration.
Quick Ship
NS-1901/120V
170,00
Lieferzeit: 7 Wochen
RoHS compliant
NS series heater, 120Vac, Nonreturnable
Quick Ship
NS-1505/120V
138,00
Lieferzeit: 7 Wochen
RoHS compliant
NS series heater,120Vac
Quick Ship
NS-1205/240V
126,00
Lieferzeit: 7 Wochen
RoHS compliant
NS series heater,240Vac
Quick Ship
NS-2601/120V
175,00
Lieferzeit: 7 Wochen
RoHS compliant
NS series heater, 120Vac, Nonreturnable
*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Style Wählen Sie:
NS für NS series-incoloy sheath
NSL für NSL Series- 10 in. wire type leads

(2) Size Power and Watt Density from Table Above Wählen Sie:
1205 für 1205
1405 für 1405
1505 für 1505
1807 für 1807
1801 für 1801
1901 für 1901
2001 für 2001
2401 für 2401
2501 für 2501
2601 für 2601
3015 für 3015
3301 für 3301
3601 für 3601
3802 für 3802
4302 für 4302
4827 für 4827
5403 für 5403

(3) Voltage Wählen Sie:
120V für 120 Vac
240V für 240 Vac
480V für 480Vac
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
