Coil Hose Air Line Tubing with Strain Relief Fittings  - Discontinued

OCH Series Tubing - Pneumatic Coiled Hose

Coiled Polyurethane Hose with Strain Relief Fittings | OCH Series Tubing - Pneumatic Coiled Hose

Coiled Polyurethane Hose with Strain Relief Fittings

  • Made with Ether-based Polyurethane Tubing, 95A Durometer
  • Resists Abrasion and Kinking
  • Each Coiled Hose Comes with 1/4" Strain Relief Fitting on Each End, 1 Rigid and 1 Swivel
  • Ideal for Use with Air Tools and Air Line Accessories
  • Retractable Coil Returns to its Original Shape to Keep Areas Organized and Safe
  • Variety of Colors to Choose From. Blue, Yellow, Green, and Red
  • Can be Used with Water and other Fluids

Beschreibung

The OCH series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

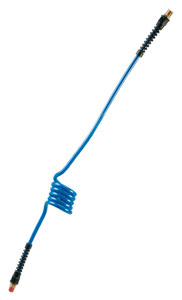

The OMEGAFLEX® coiled hose assembly with strain relief fittings offers the perfect solution to keep work areas free of loose supply hoses that can tangle and create a mess. These are manufactured with 3/8" OD by 1/4" ID polyurethane tubing. Each assembly comes with a 1/4" fitting on each side; one rigid and one swivel. For ease of identification when incorporating several hose assemblies we offer different colors: Blue, Red, Green, and Yellow.
CODECOLOR
-YYellow
-GNGreen
-BLBlue
-RRed

SPECIFICATIONS
Temperature Range: -40 to 52°C(-40 to 125°F)
Vacuum Rating: To 28" Hg
Working Pressure: 170 psi @ 75 °F/25°C,
70psi @ 150°F/65°C with 3:1 Safety factor
Working Length: 80 to 90% of material length
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
OCH-3814-5-A-GN
Consult Sales
Lieferzeit:


Green 1.5m (5') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-10-A-GN
€32,06
Lieferzeit: 1 Woche

Green 3.0m (10') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-15-A-GN
Consult Sales
Lieferzeit:


Green 4.6m (15') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-25-A-GN
Consult Sales
Lieferzeit:


Green 7.6m (25') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-5-A-R
Consult Sales
Lieferzeit:


Red 1.5m (5') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-10-A-R
Consult Sales
Lieferzeit:


Red 3.0m (10') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-15-A-R
Consult Sales
Lieferzeit:


Red 4.6m (15') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-25-A-R
Consult Sales
Lieferzeit:


Red 7.6m (25') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-5-A-Y
Consult Sales
Lieferzeit:


Yellow 1.5m (5') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-10-A-Y
Consult Sales
Lieferzeit:


Yellow 3.0m (10') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-15-A-Y
Consult Sales
Lieferzeit:


Yellow 4.6m (15') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-25-A-Y
Consult Sales
Lieferzeit:


Yellow 7.6m (25') 3/8" OD Hose with Strain Relief Fittings
OCH-3814-5-A-BL
Consult Sales
Lieferzeit:


Blue 1.5m (5') OD Hose with Strain Relief Fittings
OCH-3814-10-A-BL
Consult Sales
Lieferzeit:


Blue 3.0m (10') OD Hose with Strain Relief Fittings
OCH-3814-15-A-BL
Consult Sales
Lieferzeit:


Blue 4.6m (15') OD Hose with Strain Relief Fittings
OCH-3814-25-A-BL
Consult Sales
Lieferzeit:


Blue 7.6m (25') OD Hose with Strain Relief Fittings
*Alle Preisangaben in Euro.
Anmerkung: Specifications listed are meant only as a guide. Each user must test the tubing under their operating conditions to determine the tubing’s suitability for the particular application. Refer to the color options chart for color codes.
