Wireless 4 to 20 mA Transmitter Part of theNOMAD®Family
These products are not CE marked and use a frequency band which is not approved for use in Europe

OM-CP-RFPROCESS101A

Multiple Transmitter Configurations
Automatically Converts Your PC Into a Strip Chart Recorder
Memory Wrap Around
Real Time Operation
Software Programmable Scale Factor, Offset Value and Engineering Units

Beschreibung

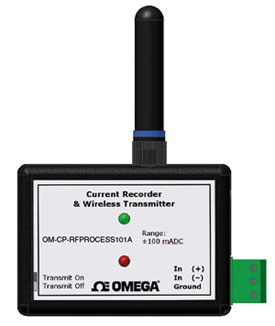

The OM-CP-RFPROCESS101A is a battery powered current recorder and wireless transmitter. This is an all-in-one compact, portable, easy to use device that will measure and transmit process measurements. When enabled, the wireless transmitter will transmit readings back to the host computer where the data can be analyzed in real time. These readings are also logged to the device ’s memory for added data security. The convenient slide switch allows the transmitter to be turned on or off without affecting the operation of the device. The device can be started,stopped and configured directly from your computer. Its small size allows it to fit almost anywhere.

In addition to the wireless communications, the OM-CP-RFPROCESS101A makes data retrieval quick and easy. Simply plug the device into an empty COM port and our user-friendly software will handle the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file.

Specifications
Input Connection: Screw terminal
Analog Conversion Time: 133 ms
Frequency Rejection: 60 MHz
Temperature Coefficient:
<100 ppm/°C;<50 ppm/°C typical
Specified Accuracy Range:
nominal range @25 °C
Engineering Units: User may define units
up to 10 characters in length
(stored within the device)
Scale Factor: Software programmable;
user may define any desired scale and offset
from +1.0000E-31 to +9.9999E+31
Memory: 8191 readings
Reading Interval: Reading every
30 seconds to every 12 hours
Calibration: Digital calibration through software
Data Format: Date and time
stamped,A,mA,µA,engineering
units specified through software
Time Accuracy: +1 minute/month
at 20 °C when RS-232 port is not in use
Computer Interface: PC serial or RS-232C COM
(interface cable required); 57600 baud
RF Baud Rate: 4800 baud
RF Carrier Frequency: 418 MHz
Range: 36 m (120') line of sight
Power: 3.6 V lithium battery included
Battery Life: 1 year typical,
(1 minute reading rate @25°C)
Operating Environment:
-30 to 70 °C (-22 to158 °F)
0 to 95% RH non-condensing
Software: Windows 95/98/ME/NT/2000/XP/VISTA
Dimensions:
42 H x 68 W x 20 mm D
(1.7 x 2.7 x 0.8")
Weight: 60 g (2 oz)
These products are not CE marked and use a frequency band which is not approved for use in Europe

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

OM-CP-RFPROCESS101A-1MA

Consult Sales

Lieferzeit:

Wireless current transmitter, ±1 mA range

OM-CP-RFPROCESS101A-25MA

Consult Sales

Lieferzeit:

Wireless current transmitter, ±25 mA range

OM-CP-RFPROCESS101A-100MA

Consult Sales

Lieferzeit:

Wireless current transmitter, ±100 mA range

OM-CP-RFC101A

Consult Sales

Lieferzeit:

Includes RF receiver, 1.2 m (4') RS-232 cable with DB9F termination, windows software and operator’s manual

OM-CP-BAT105

€24,16

Lieferzeit: 9 Wochen

Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-3

€10,47

Lieferzeit: 1 Woche

Replacement 3 position terminal block connector

*Alle Preisangaben in Euro.
Anmerkung: The OM-CP-RFC101A receiver package is required to opeate the wireless transmitter
These products are not CE marked and use a frequency band which is not approved for use in Europe

Zugehörige Dokumentation:

Download OM-CP Series - Data Logger and Software User Guide

Download OM-CP Series - Data Logger Quickstart Guide
