 - Discontinued Temperature, Humidity, Pressure and Tri-Axial Shock Data Logger

OM-CP-ULTRASHOCK-EB

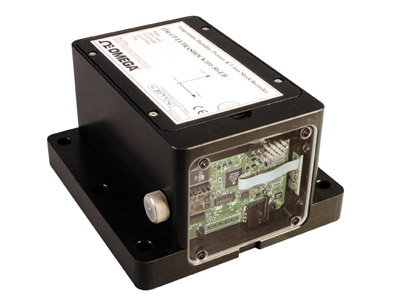

Temperature, Humidity, Pressure and Shock Data Logger | OM-CP-ULTRASHOCK-EB

Temperature, Humidity, Pressure and Shock Data Logger

5 year warranty CE
  • All Inclusive Design
  • Built-In Accelerometers
  • 60 Day Battery Life
  • High Speed Download
  • Reusable
  • Compact
  • User-Friendly

Beschreibung

The OM-CP-ULTRASHOCK-EB series has been discontinued. Please see the OM-CP-SHOCK-SERIES as a possible alternative or contact our Sales department.

Click here if you want to know more about accelerometers.

The OM-CP-ULTRASHOCK-EB is a battery powered, stand alone temperature, pressure, humidity and 3-axis shock recorder which offers a battery life of up to 60 days typical. The unit measures and records temperature, pressure and humidity at the selected reading rates, while shock is recorded as the peak acceleration levels over the same interval.

The OM-CP-ULTRASHOCK-EB is specifically designed for documenting dynamic environments such as moving vehicles, trucks, containers, ships, etc. The device is also valuable in characterizing environments such as production and assembly lines of delicate electronics, IC fabrication, communications and computer components.

This is an all-in-one compact, portable, easy to use device that will measure and record up to 174,762 measurements per channel (1,572,858 measurements, total). The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.

The device can be started and stopped directly from your computer and it’s small size allows it to fit almost anywhere. The OM-CP-ULTRASHOCK-EB makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our userfriendly software does the rest.

Specifications
TEMPERATURE
Sensor:
Semiconductor
Range: -20 to 54ºC (-4 to 129ºF)
Resolution: 0.1ºC
Accuracy: ±0.5ºC (0 to 50ºC)

HUMIDITY
Sensor:
Capacitive Polymer
Range: 5 to 95% RH
Accuracy: ±3% RH (±2% RH Typical at 25°C)
Resolution: 0.1% RH
Specified Accuracy Range: 10 to 40°C; 10 to 80% RH

PRESSURE
Sensor:
Semiconductor strain gage
Range: 0 to 30 psia
Resolution: 0.002 psia
Calibrated Accuracy: ±1.0% FSR 25°C; ±0.2% typical
Specified Accuracy Range: 0 to 30 psia, 25°C

SHOCK
Accelerometer Type:
MEMS Semiconductor
Sampling Rate: 1.953 ms (512 Hz)
Acceleration Frequency Response: 0 Hz to approximately 400 Hz
Memory: 174,762 per channel (1,572,858 total readings)
Recording Interval: 64 Hz to 5 minutes for shock, selectable in software. Temperature, pressure and humidity sampled approximately every 2 seconds at intervals faster than 2 seconds. Otherwise, sampled at the reading rate.
Start Mode: Immediate start or delay start, up to 180 days from PC launch
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out with the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 6 D-cell alkaline (battery included), user replaceable
Data Format: Date and time stamped; gravities (g and mg) °C, °F, °K, °R, %RH, mg/ml water vapor concentration, psia, inHg, mmHg, bar, atm, torr, Pa, kPa, MPa, Mpa
Time Accuracy: ±1 minute per month at 20 to 30°C
Battery Life: 60 days typical with alkaline battery, 1 minute reading rate @ 25°C
Computer Interface: PC or USB (interface cable required); 115,200 baud
Software:
WIN98/NT/2000/XP/VISTA 32-bit
(VISTA 32-bit version only;
VISTA 64-bit is not supported)
Operating Environment: -20 to 54°C (-4 to 129°F) 0 to 95% RH non-condensing
Dimensions: 89 H x 111 W x 26 mm D (3.5 x 4.4 x 1.0")
Weight: 2.3 kg (80 oz)
Material: Anodized aluminum
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Quick Ship
Click to expand/minimize a list of what others bought with theOM-CP-IFC200
OM-CP-IFC200
€133,00
Lieferzeit: 1 Woche

Windows software and 3.5 m USB interface cable
*Alle Preisangaben in Euro.
Anmerkung: Operator's manual and RS-232 cable are included with the OM-CP-IFC110 Windows software (required to operate the data logger and sold separately).
