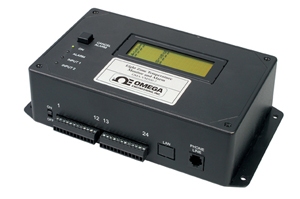

OMEGAPHONE Alarm Dialer
Eight Zone Temperature with Optional Ethernet Data Collection

OMA-VM505 and OMA-VM500-7

This unit is not BABT approved and should not be connected to the UK puplic telephone network.
Monitors Power Status, 2 Door Sensor Inputs (NC Dry Contact) and up to Eight Channels of Temperature Input
Low Temperature Range for Monitoring Refrigerators and Freezers
OMA-VM505 Series for 1000 Ω Pt RTD Inputs
OMA-VM500-7 Series for 100 Ω Pt RTD Inputs
Programmable High and Low Temperature Limits and Alarm Time Delay
Program up to Four 20 Digit Phone Numbers
Works with Telephone Pagers
Easy-to-Follow Menu Driven Programming Done Over the Phone
Optional Ethernet Data Collection Package
Wall Mount Enclosure
Rechargable Backup Battery (Included)

Auto-Dialer und Alarmüberwachungssysteme - Verwandte Produkte anzeigen

Beschreibung

OMA-VM505 and OMA-VM500-7 dialers monitor power, 2 door status inputs and up to eight independent temperature zones and dials up to four phone or pager numbers if the temperature in any zone goes out of limits, if there is a power outage or a door is opened. The integrated voice tells you which zone is out of limits and the current temperature. You can call the unit at any time to hear a report on the temperature of any zone, power status and door status.

All programming is accomplished over the phone following simple voice instructions. These dialers are easily programmed over the phone. Simply locate the unit, plug in the phone line and the power adapter, turn the unit on and then call the unit from another phone or cell phone. Follow the spoken instructions and instructions in the operator’s manual to program the phone numbers where you want the dialer to call in case of an alert condition and the upper and lower temperature limits. Then hang up by pressing the "0" key on your phone until the unit says "Good-bye." The system is now programmed and is monitoring your facility for temperature, power status and door status.

Ethernet Data Collection
The optional Ethernet data collection package allows you to remotely check the dialer status with a standard web browser. Using this package you can view real time data, view historical data, automatically send alarm emails to key personnel that specify the exact location and cause of the problem, maintain secure data files, easily create and print graphs over specified time periods for any data and also program temperature limits remotely.

Specifications
Number of Temperature Inputs: 8
Input Type:
OMA-VM505 Series;
2-wire 1000 Ω Pt RTD, α = 0.00385
OMA-VM500-7 Series;
2-wire 100 Ω Pt RTD, α = 0.00385
Temperature Measurement Range:
OMA-VM505: -100 to 35°C (-148 to 96°F)
OMA-VM500-7: -200 to 200°C (-328 to 392°F)
Accuracy: ±1°C (±2°F)
Resolution: 1°C/1°F
High and Low Temperature Limits: Programmable
Alarm Time Delays: Programmable
Door Sensor Inputs: 2 inputs @ 12 Vdc 10 mA source
Telephone: Standard RJ11 phone jack connection
Telephone Numbers: Stores up to four phone numbers
up to 20 digits long
Recording Time for Local Identification Message: 5 seconds
Recording Time for Individual Sensor Identification Messages: 5 seconds
Operation: Operates with answering machine on the same phone line
Display: Integral LCD display
Alarm Notification: Alarm siren sounds and alarm relay closes if the temperature
goes out of limits in a zone, power goes out or a door opens
Alarm Cancellation: Pushbutton on front of the unit silences
the alarm and cancels emergency telephone calls
Alarm Relay Output: 1A, 30 Vdc
Alarm Buzzer: 85 dB
Power: Powered from 120 Vac wall mount transformer power supply (included)
Battery Backup: 4-hour rechargeable battery backup; 20 or 30 hours optional
Operating Ambient: 0 to 51°C (32 to 125°F)
Electrical Connections: 2 pluggable 12 position terminal blocks
Dimensions: 117 mm H x 223 mm W x 57 mm D (4.62 x 8.79 x 2.26”)
Material: ABS plastic
Weight: 1.4 kg (3 lb)

Ethernet Data Collection
LAN: Ethernet 10Base-T or 100Base-TX (auto-sensing)
Transport Protocol: TCP/IP, UDP
Connector: RJ45
LED Indicators: 10Base-T connection, 100Base-TX
connection, link and activity indicator (full/half duplex)
This unit is not BABT approved and should not be connected to the UK puplic telephone network.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

OMA-VM505

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer

OMA-VM505-B20

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with 20 hour battery backup

OMA-VM505-B30

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with 30 hour battery backup

OMA-VM505-DCP

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection

OMA-VM505-DCP-B20

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection and 20 hour battery backup

OMA-VM505-DCP-B30

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection and 30 hour battery backup

RTD-1-F3145-36-T

€91,90

Lieferzeit: 1 Woche

Epoxy potted 1000 Ω RTD element with 1.8 m (3')* of 26 AWG PFA insulated stranded nickel plated copper lead wire

OMA-VM500-7

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer

OMA-VM500-7-B20

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with 20 hour battery backup

OMA-VM500-7-B30

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with 30 hour battery backup

OMA-VM500-7-DCP

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection

OMA-VM500-7-DCP-B20

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection and 20 hour battery backup

OMA-VM500-7-DCP-B30

Consult Sales

Lieferzeit:

8 channel temperature alarm dialer with ethernet data collection and 30 hour battery backup

RTD-1-F3105-36-T

€96,02

Lieferzeit: 1 Woche

Epoxy potted 100 Ω RTD element with 1.8 m (3')* of 26 AWG PFA insulated stranded nickel plated copper lead wire

*Alle Preisangaben in Euro.
Anmerkung: This unit is not BABT approved and should not be connected to the UK puplic telephone network.
Each unit is supplied with complete user’s manual and ac adaptor.
