Analog Output Boards
Discontinued Product! See Note Below

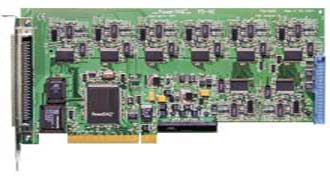

PowerDAQ PCI D/A Boards

ZUR BESTELLTABELLE

Analog outputs (choice of 8, 16 or 32 16-bit channels)
Digital inputs (8 lines)
Digital outputs (8 lines)
Three 24-bit counters/ timers
Three clock/interrupt lines
Channel list
User defined power-on state
Simultaneous channels update
Onboard buffer size: 2k samples

Beschreibung

The PD2 DAO Series is no longer available. Please see the OMB-DAQBOARD-2000 Series as a substitute or contact Sales/Data Acquistion Engineering.

Offering as many as 32 analog outputs with 16-bit resolution, PD2-AO PCI-bus boards,also includes 16 digital I/O lines and three counter/timers. With these functions, the PD2-AO is well suited to implement complex closed-loop systems as well as handle motor control and many other industrial-automation tasks. The card calibrates each analog output individually without using trimpots and instead relies on a special D/A-based scheme that stores calibration coefficients in EEPROM and loads them automatically upon power up. This method also keeps board outputs in a predefined user-programmable state upon system startup.

For complete product specifications see the Related Links section at the bottom of this page.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

PD2-AO-8/16

Consult Sales

Lieferzeit:

5 8-channel analog output, 16 bits, 100 kS/s per channel,three 24-bit counter/timers

PD2-AO-16/16

Consult Sales

Lieferzeit:

16-channel analog output, 16 bits, 100 kS/s per channel, three 24-bit counter/timers

PD2-AO-32/16

Consult Sales

Lieferzeit:

32-channel analog output, 16 bits, 100 kS/s per channel, three 24-bit counter/timers

PD2-AO-STP-16

Consult Sales

Lieferzeit:

16-channel screw-terminal panel for PD2-AO includes 96-way; 1 m cable

PD2-AO-STP-32

Consult Sales

Lieferzeit:

32-channel screw-terminal panel for PD2-AO includes 96-way; 1 m cable

*Alle Preisangaben in Euro.
Anmerkung: All PowerDAQ boards include a complete user’s manual, Quick Start application and driver software.
