Discontinued - see phh103b

PHH-103A

ZUR BESTELLTABELLE

Splashproof Housing
Mounting Magnet on Back of Meter
°C/°F Switchable
Simultaneous Display of pH or mV and Temperature
Automatic or Manual Temperature Compensation
Auto Shut-Off after 10 Minutes of Non-Use
Large 20 mm High Digits for pH and mV

Beschreibung

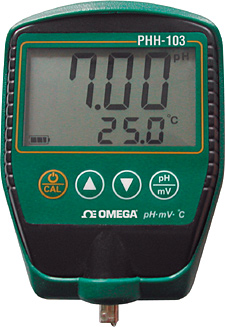

The PHH-103A is a portable, microprocessor-based temperature meter. Its rugged, splashproof housing makes it ideal for field applications. On its large, 2-line LCD, the PHH-103A can display pH/mV and temperature readings simultaneously. Up to 5 buffer values can be stored in memory, allowing for fast, accurate calibration. Calibration (1-point, 2-point, etc.) is user adjustable. The display will indicate the percentage of slope (PTS) to show the status of the electrode after slope calibration. The PHH-103A also features a low-battery indicator and will automatically shut off after 10 minutes of non-use. Easy mounting is accomplished with the large magnet on the back of the meter or by mounting hole on top of the meter. A suction cup mounting hook is supplied with the meter.

Specifications
Accuracy/Range/Resolution:

Measurement	Range	Resolution	Accuracy
pH	0 to 14	0.01	0.02
mV	±1999	1	2
Temp (°F)	32 to 212	0.1	0.5
Temp (°C)	0 to 100	0.1	0.3

Temp Compensation: Automatic 0 to 100°C, or manual
Calibration: pH 4, 7, 10
pH Connection: Mini BNC connector, 100 mm long probe, epoxy body, 1 m long cable
Temperature Sensor: Pt 100 Ω
Power: 9 V battery (included); low-battery indicator
Dimensions: 108 H x 75 W x 30 mm D
pH/mV Display: 20 mm high
Weight: 135 g with battery

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

PHH-103A

Consult Sales

Lieferzeit:

pH/mV/temp portable meter

Accessories

PHE-103A

Consult Sales

Lieferzeit:

Replacement electrode w/ATC & temp probe

PHA-4

€16,67

Lieferzeit: ab Lager

Buffer solution, pH 4, 475 mL bottle

PHA-7

€16,67

Lieferzeit: ab Lager

Buffer solution, pH 7, 475 mL bottle

PHA-10

€16,67

Lieferzeit: ab Lager

Buffer solution, pH 10, 475 mL bottle

*Alle Preisangaben in Euro.
Anmerkung: Comes with hard carrying case, rubber boot, pH/temperature electrode, small suction cup electrode holder, 4 pH and 7 pH buffer solutions, suction cup mounting hook, and 9 V battery and complete operator’s manual.
