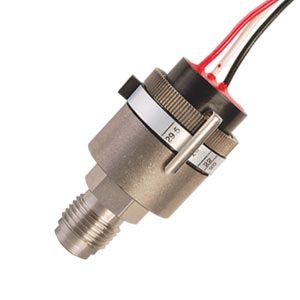

High Purity Pressure/Vacuum Switches with All Stainless Steel Wetted Parts

PSW-690 Series

Pressure/Vacuum Switches | PSW-690 Series

Pressure/Vacuum Switches

142,00 PSW-692-V5

3 year warranty
  • All Stainless Steel Wetted Parts
  • Sensing Element Capsule, Electron Beam Welded
  • Helium Leak Tested 4 x 10-9 STD CC/sec
  • External Pressure Scale and Pointer For Easy Set Point Adjustment
  • Available with 1/4 VCR Male or 1/8-27 NPT Male Fittings
  • NEMA 4 Enclosure
  • Available with 1 or 5 A Switch
Druckschalter - Verwandte Produkte anzeigen

Beschreibung

SPECIFICATIONS
Process Temp: -54 to 107°C (-65 to 225°F); setpoint change of up to 2% of sensor capacity may be anticipated when switch is used either below -23°C or above 51°C
Cycling: Not to exceed 20 cycles/min, 1 million cycles
Proof Pressure: 150% max pressure
Wetted Parts: 17-7 PH electron beam welded, 303 SS fitting
Enclosure: 303 Stainless Steel body, zinc alloy with chromate finish locking ring and switch housing, valox cap
Dimensions: 51 L x 29 mm Dia (2 x 1.125") with NPT fitting; 60 L x 29 mm Dia (2.375 x 1.125") with VCR fitting
Weight: Approx. 85g (3 oz)
Pressure Port: 1/8-27 MNPT or 1/4 VCR
Electrical: 300 mm (12") pigtail leads, 20 AWG, polyvinyl insulated
Wiring Code:
   Pressure Switch: Black = Common, Red = N/C, White = N/O
   Vacuum Switch: Black = Common, Red = N/O, White = N/C
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
Gage Pressure Switches with 1/8 NPT Fitting and 1 A Switch
Quick Ship
PSW-691-N1
124,00
Lieferzeit: 1 Woche

0.8 to 28.5 psig decreasing range, 1.6 to 30.0 psig increasing range, ±0.6 psig setpoint repeatability, 30 psig max pressure
Quick Ship
PSW-692-N1
124,00
Lieferzeit: 3 Wochen

2.0 to 48.0 psig decreasing range, 3.0 to 50.0 psig increasing range, ±1.0 psig setpoint repeatability, 50 psig max pressure
Quick Ship
PSW-693-N1
124,00
Lieferzeit: 4 Wochen

3.0 to 96.5 psig decreasing range, 4.5 to 100.0 psig increasing range, ±2.0 psig setpoint repeatability, 100 psig max pressure
Quick Ship
PSW-694-N1
124,00
Lieferzeit: 1 Woche

7.5 to 242.5 psig decreasing range, 9.7 to 250 psig increasing range, ±5.0 psig setpoint repeatability, 250 psig max pressure
Quick Ship
PSW-695-N1
137,00
Lieferzeit: 5 Wochen

20.0 to 485 psig decreasing range, 20 to 500 psig increasing range, ±10.0 psig setpoint repeatability, 500 psig max pressure
Gage Pressure Switches with 1/8 NPT Fitting and 5 A Switch
Quick Ship
PSW-691-N5
137,00
Lieferzeit: 1 Woche

0.8 to 28.5 psig decreasing range, 1.6 to 30.0 psig increasing range, ±0.6 psig setpoint repeatability, 30 psig max pressure
Quick Ship
PSW-692-N5
124,00
Lieferzeit: 6 Wochen

2.0 to 48.0 psig decreasing range, 3.0 to 50.0 psig increasing range, ±1.0 psig setpoint repeatability, 50 psig max pressure
Quick Ship
PSW-693-N5
137,00
Lieferzeit: 5 Wochen

3.0 to 96.5 psig decreasing range, 4.5 to 100.0 psig increasing range, ±2.0 psig setpoint repeatability, 100 psig max pressure
Quick Ship
PSW-694-N5
124,00
Lieferzeit: 5 Wochen

7.5 to 242.5 psig decreasing range, 9.7 to 250 psig increasing range, ±5.0 psig setpoint repeatability, 250 psig max pressure
Quick Ship
PSW-695-N5
137,00
Lieferzeit: 3 Wochen

20.0 to 485 psig decreasing range, 20 to 500 psig increasing range, ±10.0 psig setpoint repeatability, 500 psig max pressure
Gage Pressure Switches with 1/4 VCR Fitting and 1 A Switch
Quick Ship
PSW-691-V1
129,00
Lieferzeit: 6 Wochen

0.8 to 28.5 psig decreasing range, 1.6 to 30.0 psig increasing range, ±0.6 psig setpoint repeatability, 30 psig max pressure
Quick Ship
PSW-692-V1
129,00
Lieferzeit: 1 Woche

2.0 to 48.0 psig decreasing range, 3.0 to 50.0 psig increasing range, ±1.0 psig setpoint repeatability, 50 psig max pressure
Quick Ship
PSW-693-V1
129,00
Lieferzeit: 6 Wochen

3.0 to 96.5 psig decreasing range, 4.5 to 100.0 psig increasing range, ±2.0 psig setpoint repeatability, 100 psig max pressure
Quick Ship
PSW-694-V1
142,00
Lieferzeit: 5 Wochen

7.5 to 242.5 psig decreasing range, 9.7 to 250 psig increasing range, ±5.0 psig setpoint repeatability, 250 psig max pressure
Quick Ship
PSW-695-V1
142,00
Lieferzeit: 5 Wochen

20.0 to 485 psig decreasing range, 20 to 500 psig increasing range, ±10.0 psig setpoint repeatability, 500 psig max pressure
Gage Pressure Switches with 1/4 VCR Fitting and 5 A Switch
Quick Ship
PSW-691-V5
142,00
Lieferzeit: 5 Wochen

0.8 to 28.5 psig decreasing range, 1.6 to 30.0 psig increasing range, ±0.6 psig setpoint repeatability, 30 psig max pressure
Quick Ship
PSW-692-V5
142,00
Lieferzeit: 5 Wochen

2.0 to 48.0 psig decreasing range, 3.0 to 50.0 psig increasing range, ±1.0 psig setpoint repeatability, 50 psig max pressure
Quick Ship
PSW-693-V5
142,00
Lieferzeit: 5 Wochen

3.0 to 96.5 psig decreasing range, 4.5 to 100.0 psig increasing range, ±2.0 psig setpoint repeatability, 100 psig max pressure
Quick Ship
PSW-694-V5
142,00
Lieferzeit: 1 Woche

7.5 to 242.5 psig decreasing range, 9.7 to 250 psig increasing range, ±5.0 psig setpoint repeatability, 250 psig max pressure
Quick Ship
PSW-695-V5
129,00
Lieferzeit: 6 Wochen

20.0 to 485 psig decreasing range, 20 to 500 psig increasing range, ±10.0 psig setpoint repeatability, 500 psig max pressure
Vacuum Switches with 1/8 NPT Fitting
Quick Ship
PSW-696-N1
137,00
Lieferzeit: 1 Woche

1.6 to 27.0 inHg decreasing range, 2.7 to 28.2 inHg increasing range, ±1.2 inHg setpoint repeatability, 29.9 inHg max pressure, 1 A switch
Quick Ship
PSW-696-N5
124,00
Lieferzeit: 1 Woche

1.6 to 27.0 inHg decreasing range, 2.7 to 28.2 inHg increasing range, ±1.2 inHg setpoint repeatability, 29.9 inHg max pressure, 5 A switch
Vacuum Switches with 1/4 VCR Fitting
Quick Ship
PSW-696-V1
129,00
Lieferzeit: 4 Wochen

1.6 to 27.0 inHg decreasing range, 2.7 to 28.2 inHg increasing range, ±1.2 inHg setpoint repeatability, 29.9 inHg max pressure, 1 A switch
Quick Ship
PSW-696-V5
142,00
Lieferzeit: 5 Wochen

1.6 to 27.0 inHg decreasing range, 2.7 to 28.2 inHg increasing range, ±1.2 inHg setpoint repeatability, 29.9 inHg max pressure, 5 A switch
*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator's manual
Ordering Example: (1) PSW-692-N5 switch for 30 psig max system pressure with 1/8 NPT fitting and 5 A switch, €124,00
