  Discontinued - Industrial Wet/Wet Differential Pressure Transmitter High Over Pressure Capacity, 0-2 bar to 0-350 bar

PXM80 Series, Metric, 0-5V Output

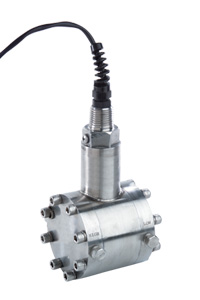

Wet/Wet Differential Pressure Transmitter | PXM80 Series, Metric, 0-5V Output

Wet/Wet Differential Pressure Transmitter

  • As an alternative see the PX3005-DIFF series: Or

    the MM Configurable MM-CONFIGURABLE series:

  • Low Differential Pressure at High Line Pressure - 100 bar Standard Optional up to 345 bar
  • Available in mv/V Output, 0-5V Output, and 4-20ma Output
  • All Stainless Steel Construction
  • Sealed for Harsh Environments
  • High Overpressure
Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

OMEGA’s PXM80 Series is a heavy duty, wet/wet, differential pressure transducer available in ranges from 0-2 to 0-350 bar. The Series is available with either of three outputs; mV/V, amplified 0-5 Vdc or 4-20 mA. These are suitable for interface with most PLCs and computer based control systems. An extremely high over pressure capacity of 100 bar or 150% of capacity (whichever is greater) make the PXM80 an extremely durable transducer. The all stainless steel construction and high over pressure protection make the PXM80 Series differential pressure transducers a high reliability transducer in harsh industrial environments.

SPECIFICATIONS
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.009% FSO/°C
   Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: G 1/4 female for ranges less than 70 bar, G1/8 female on ranges 70 bar and up
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
