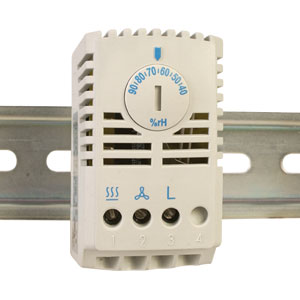

Humidity Thermostat

RH-FGHS100 Series

Humidity Thermostat

^€272,11 RH-FGHS100

ZUR BESTELLTABELLE

40 to 90% RH Range
Changeover Contact
Easy Mounting on a DIN EN 60715 Compliant Standard Rail (35 mm)
Space-Saving Compact Size
High Switching Capacity

Regler, Anzeiger und Schaltgeräte - Verwandte Produkte anzeigen

Beschreibung

The RH-FGHS100 is designed for controlling the humidity levels in outdoor enclosures and control panels. This aids in the protection of electronic circuitry and prevents the absorption of moisture by internal components.

Specifications
Dehumidifying: 24V/250V, 5A/0.2A, minimum 100 mA at 24V
Humidifying: 24V/250V, 2A/0.2A, minimum 100 mA at 24V
Hysteresis: Approximate 5% RH
Voltage: 24V to 230V, 50/60 Hz
Humidity Range: 40 to 90% RH
Sensing Element: Synthetic fiber
Connection: Screw terminals, 2.5 mm (0.098")
Weight: (Approximate) 50 g (1.76 oz)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 80°C (-4 to176°F)
Ingress Protection: IP20
Housing: UL94 plastic
Dimensions: 46 L x 37 W x 64 mm H (1.69 x 1.45 x 2.52")

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

RH-FGHS100

€272,11

Lieferzeit: 1 Woche

DIN rail mount hygrostat

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator’s manual. DIN rail sold separately.
Ordering Example: (1) RH-FGHS100 DIN rail mount hygrostat., €272,11
